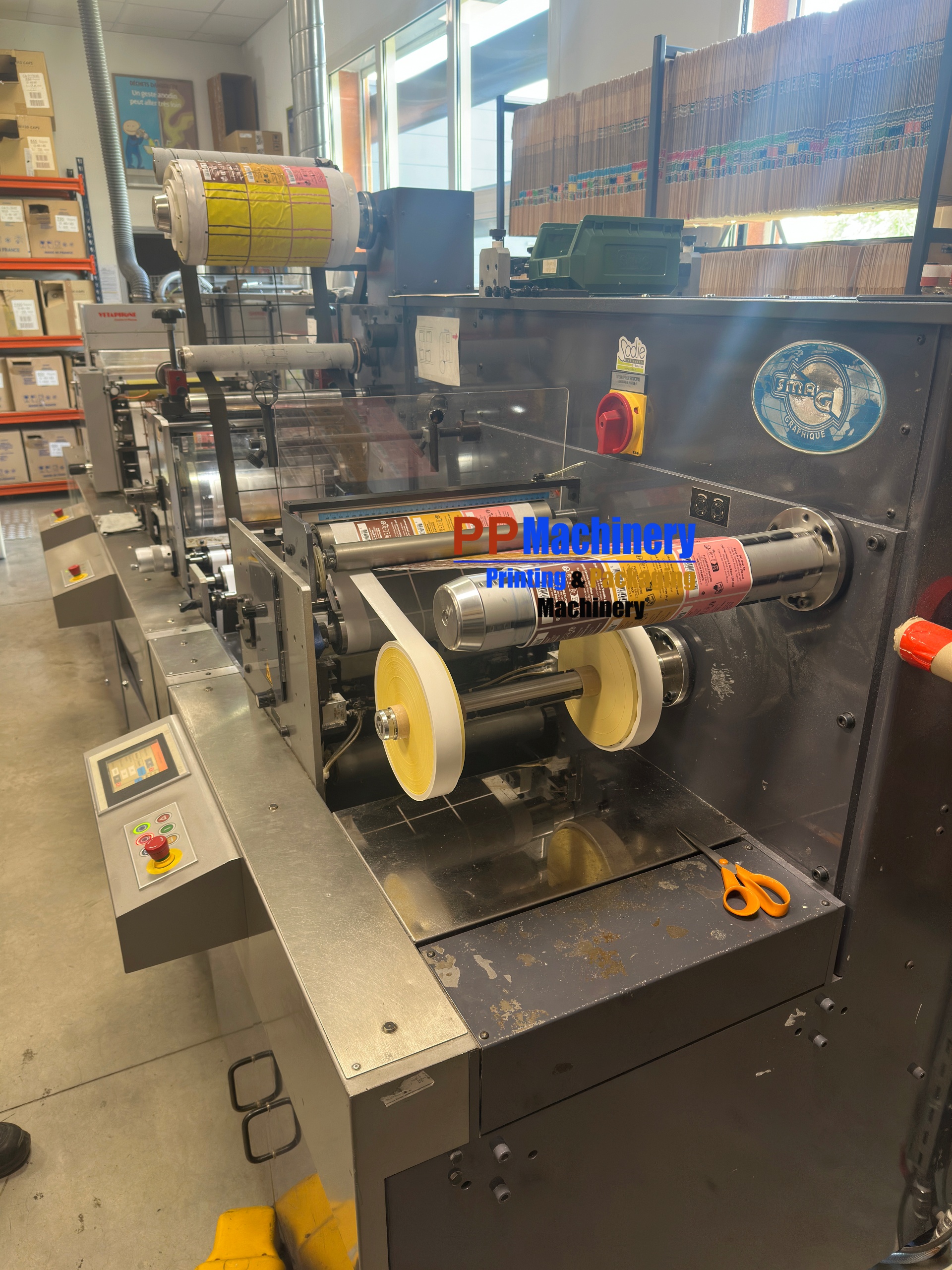

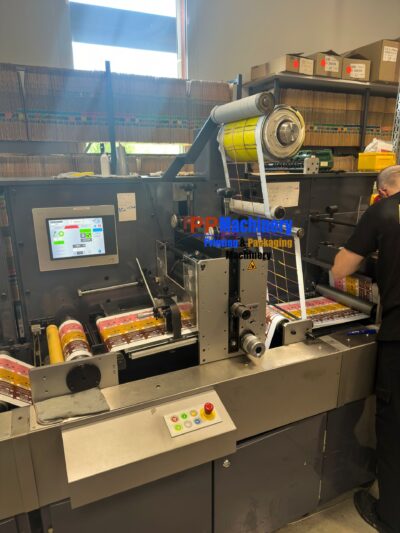

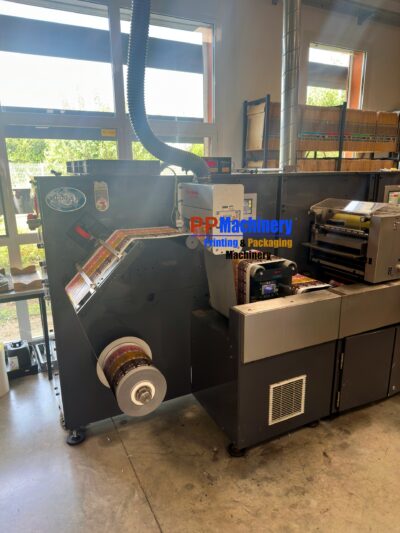

Technical Specification: SMAG Galaxie Digital (2016 Model) 340 mm
Type: Modular converting and finishing system for self-adhesive labels.
- Unwinding Unit
- Servo-driven unwinder supporting roll diameters up to 650–700 mm.
- Standard web tension control system for consistent material flow.
- Integrated splice table with mechanical or pneumatic web clamping.
- Web Guide System (E+L)
- System: Erhardt + Leimer (El Guider).
- Function: Proven sensor-controlled web guiding to ensure correct material positioning prior to the processing modules.
- Corona Treatment
- Integrated corona station for surface energy treatment.
- Purpose: Improves ink and varnish anchorage, particularly useful for synthetic or non-absorbent digital print substrates.
- Flexographic Coating Unit
- Configuration: Servo-driven flexo unit designed for full-surface or spot varnishing.
- Curing: Standard UV drying system (mercury vapor lamps).
- Technology: Precision anilox roller system for consistent varnish application.
- Semi-Rotary Die-Cutting Unit
- Technology: Servo-driven die-cutting module.
- Mode: Semi-rotary operation, allowing for variable repeat lengths without the need to change magnetic cylinders, significantly reducing setup times for short-run production.
- Registration: Optical mark registration system for accurate die-cutting in relation to the digital print image.
- Slitting Unit
- System: Standard shear knife or razor blade slitting station.
- Function: Precise longitudinal cutting of the web.
- Waste Management: Integrated trim extraction/vacuum system for edge waste.
- Rewinding Unit
- Rewinder with adjustable tension control to ensure high-quality, stable roll formation.
- Standard air-expanding shaft for 76 mm (3 inch) cores.
Machine Highlights (2016 Edition)
- Control System: Established HMI interface for machine monitoring and parameter setting.
- Efficiency: Designed for the challenges of 2016-era digital print finishing, focusing on high reliability and reduced waste during setup.
- Application: Optimized for finishing mid-to-short run digital labels, providing reliable varnish and die-cutting quality in a single, streamlined process.
