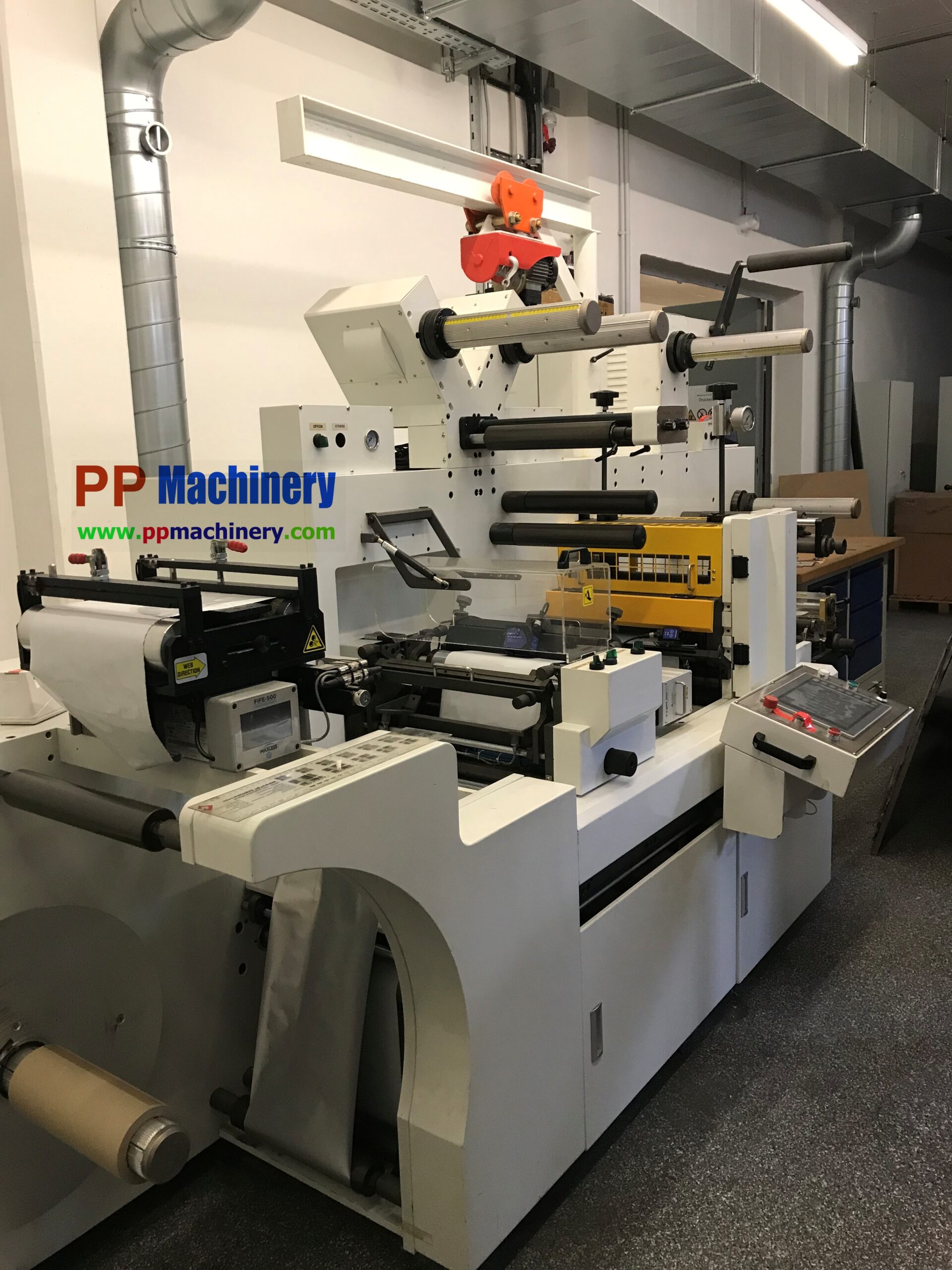

Eurotech DF 330 Compact Laser Die Label Converter from 2015
Manufacturer: Eurotech
Model: DF 330
Web width:200 mm – 330 mm
Year of production: 2015
Eurotech DF 330 Compact Laser Die Label Converter from 2015
Specifications (metric / imperial)
Web width 200 mm – 330 mm 8” – 13”
Substrate thickness 20 µm – 200 µm 0.8-8 points
Rewinder/Unwinders
Reel diameter on 700 mm 27.5”
internal unwind max.
Single or dual shaft 450 mm 17.7”
rewind max.
Lamination max dia. 300 mm 11.8”
Core diameter 76.2 mm or 152.4 mm 3” or 6”
Flexo station
Repeat range 254 mm – 482 mm 10-19”
Re-register fuction Optional
Slitting Station
Knife type Pneumatic crush (optional shear/razor)
Minimum distance crush 12.7 mm 0,5”
Requirements
Power & Air 3x400V+N+PE / 32 A / 5 bar air
Exhaust Ø160. 2 x 800 m3/h. Must go outside
Size 3.3 m x 1.7 m x 2.5 m (WxHxD)
Weight 2000 kg
