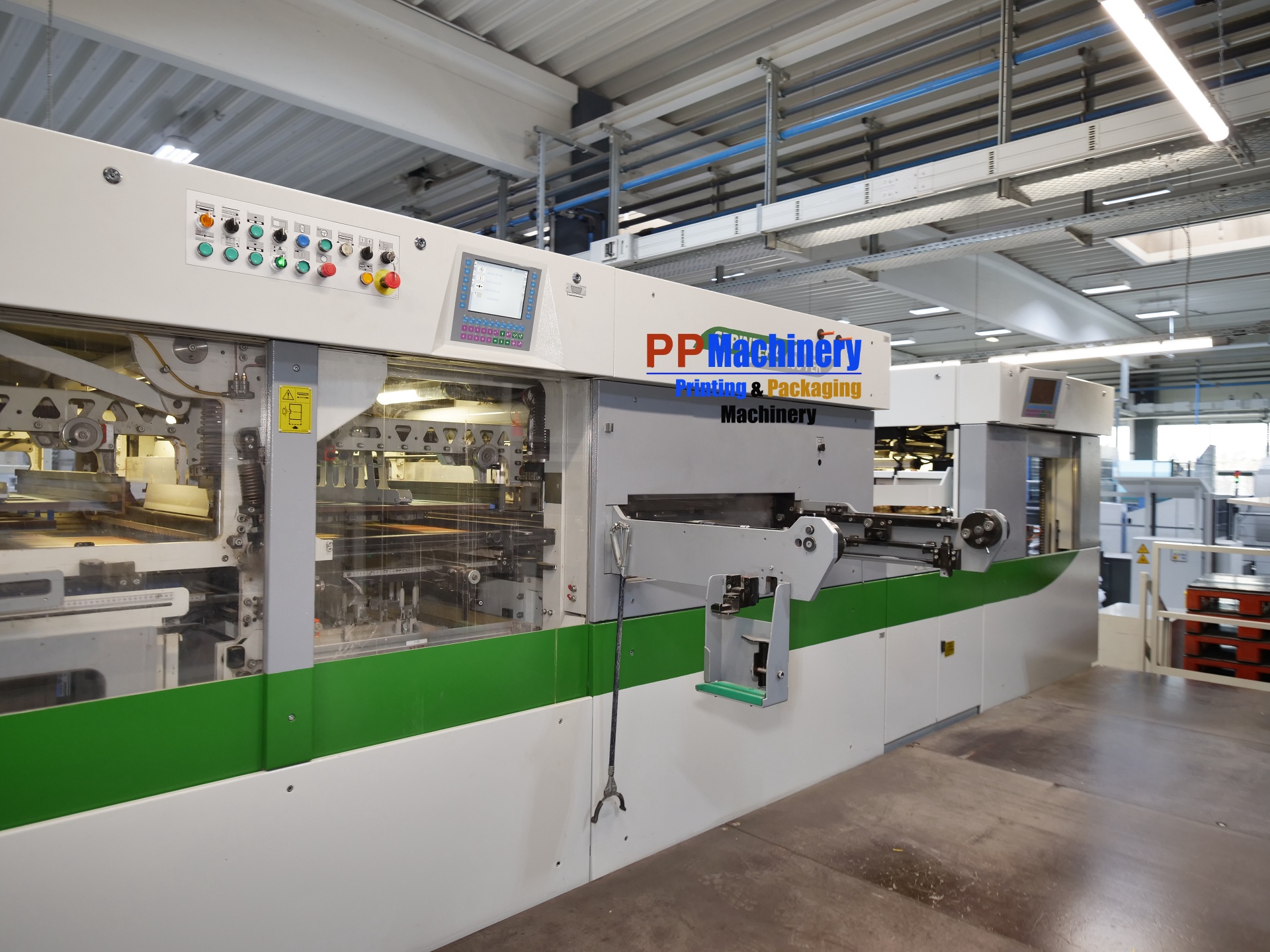

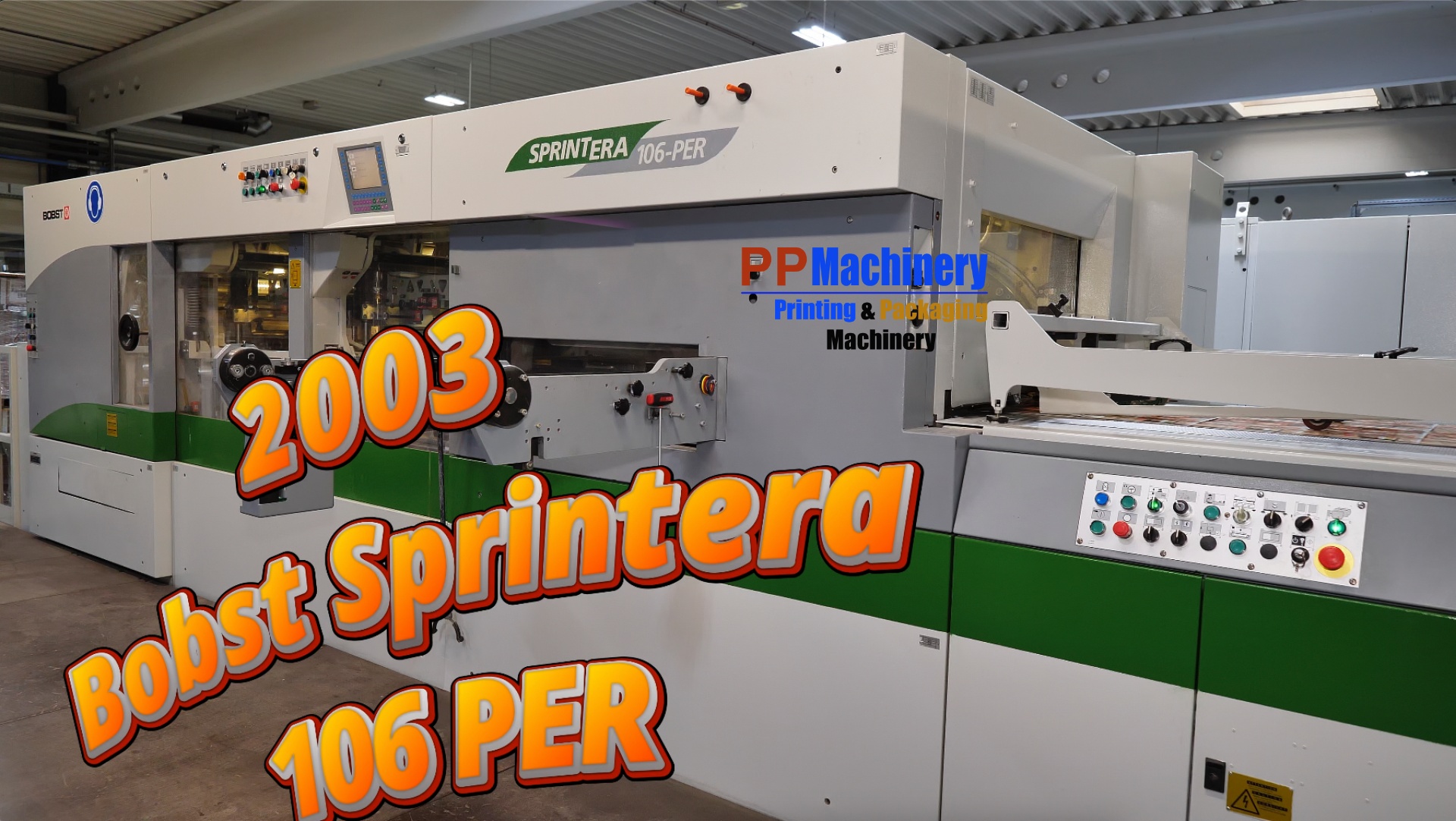

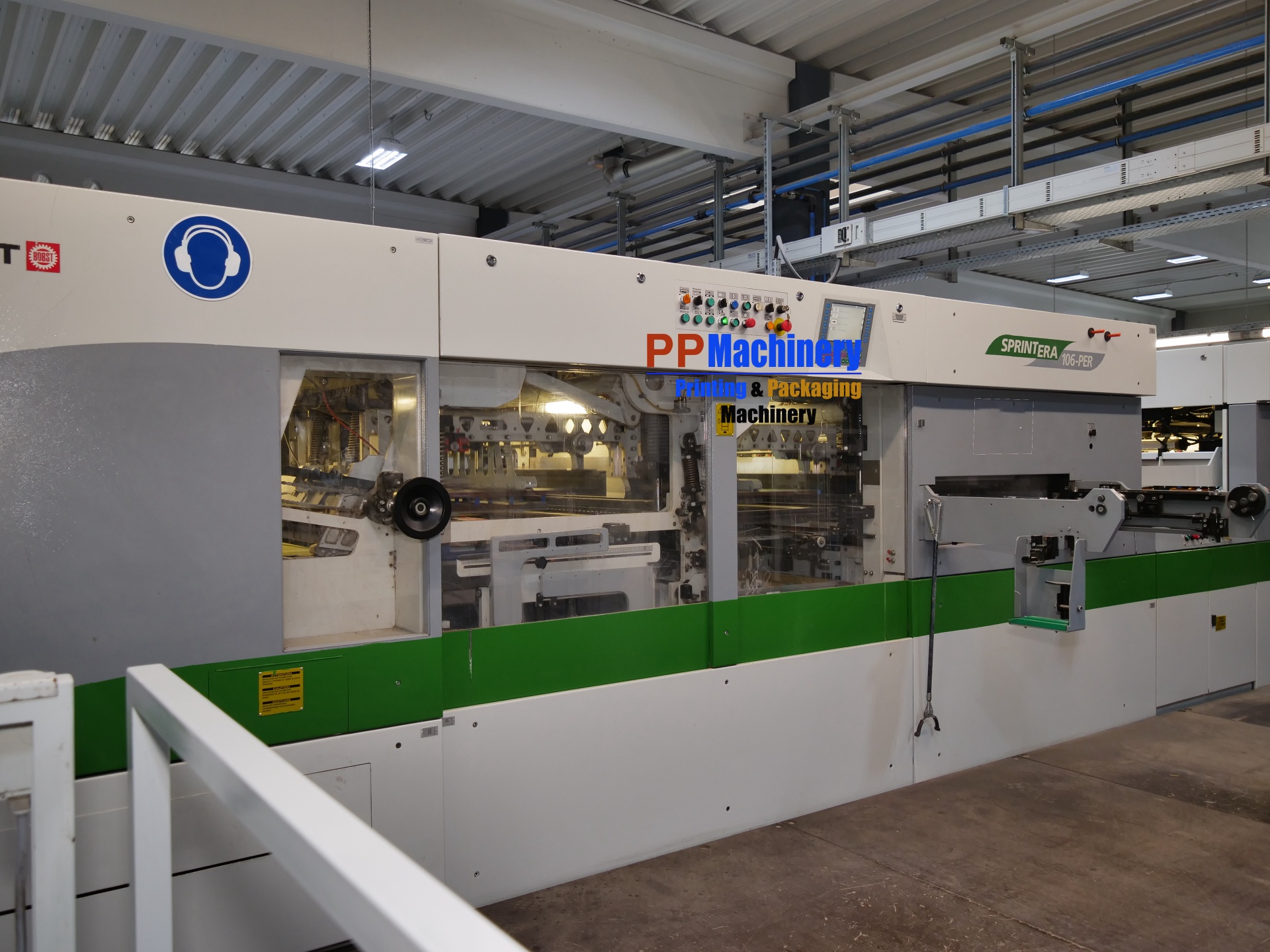

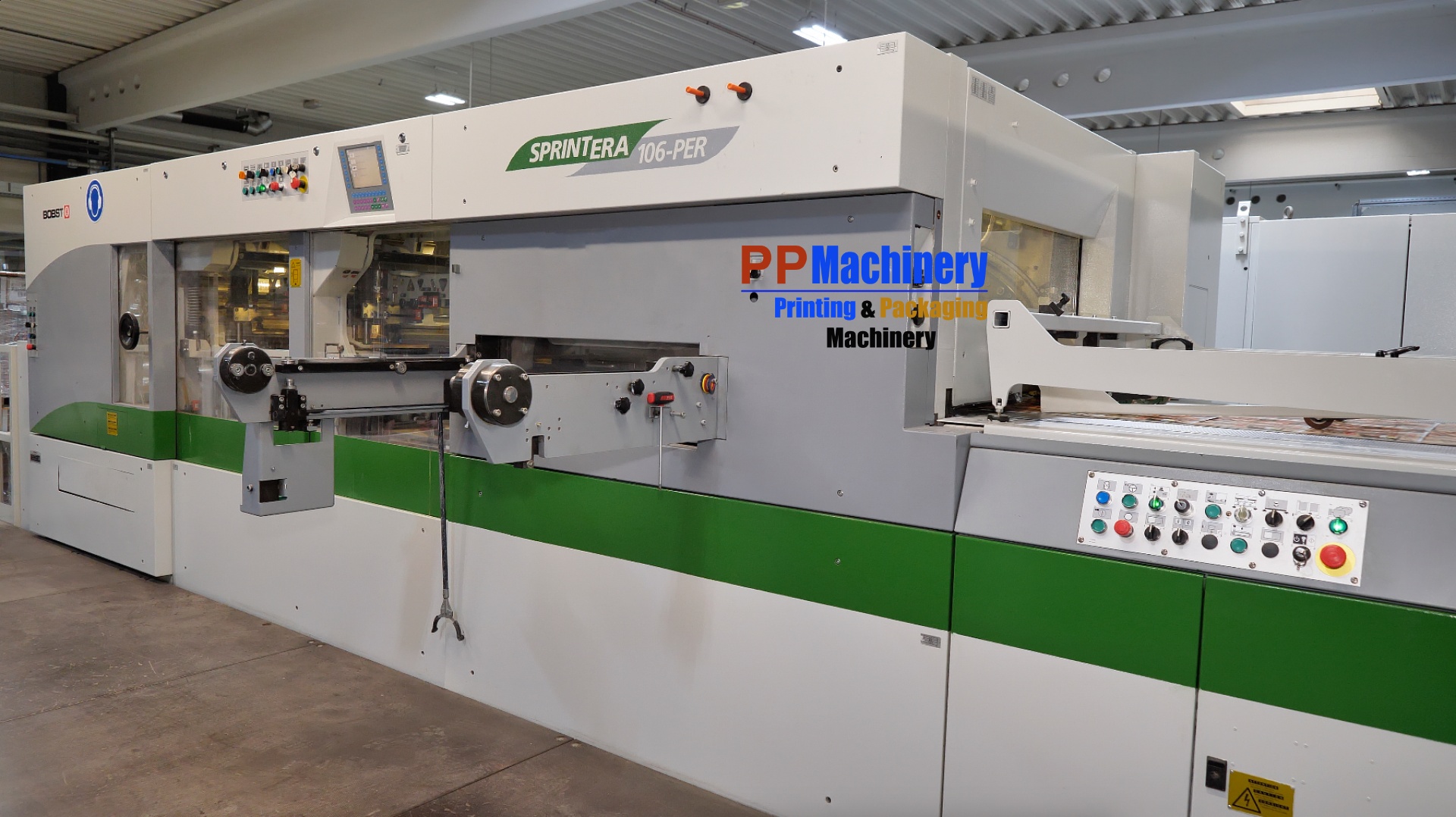

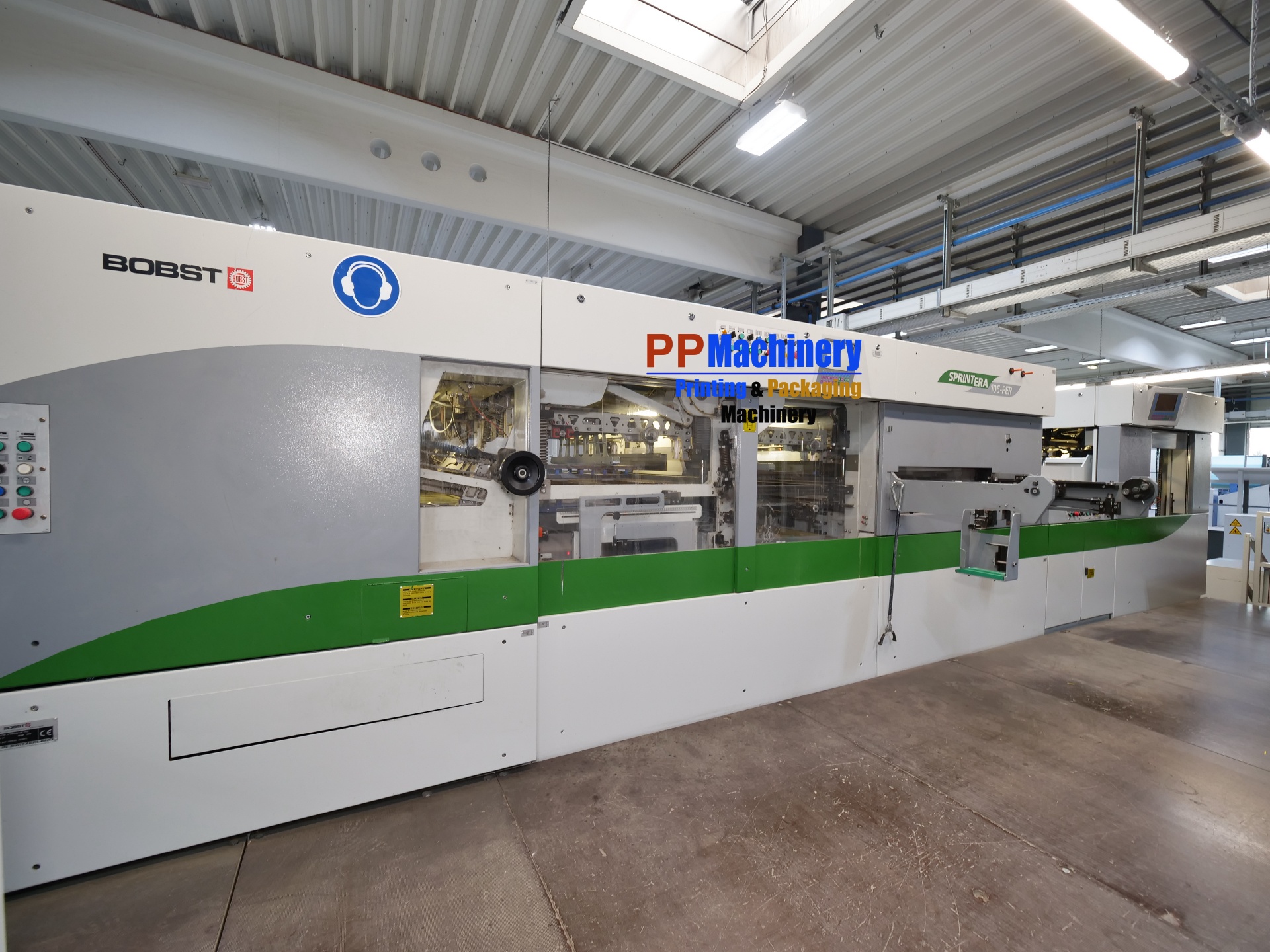

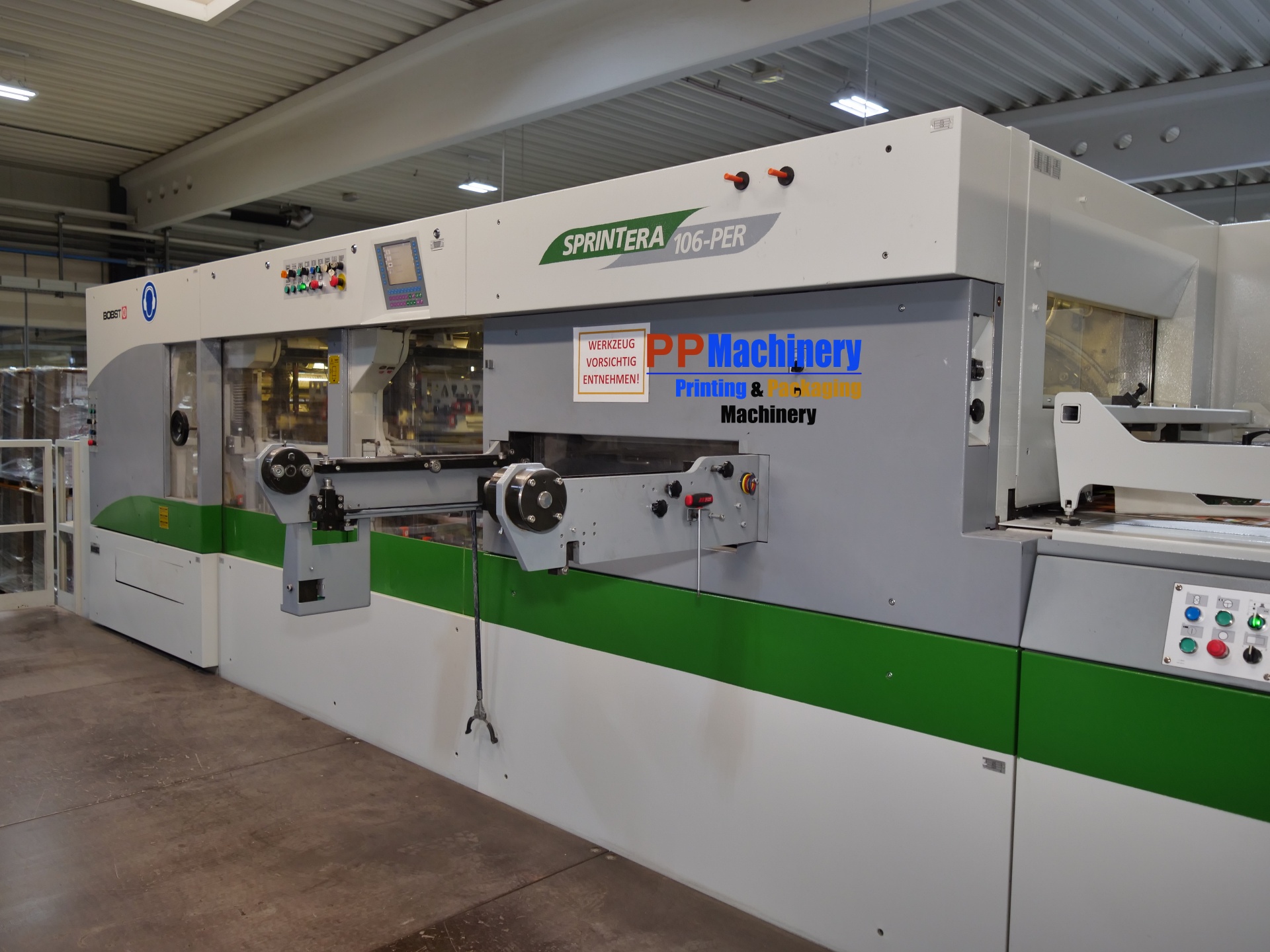

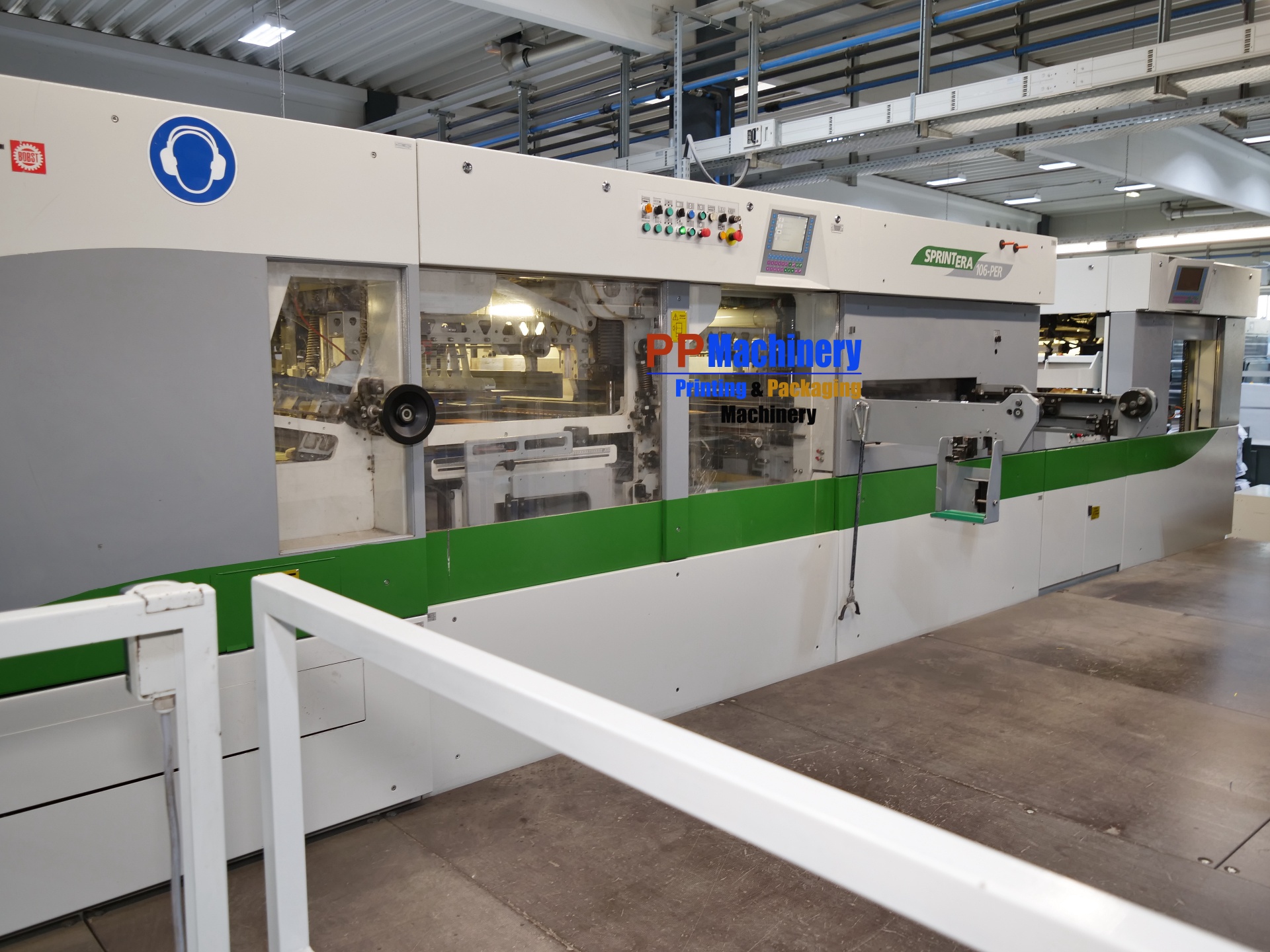

BOBST SPRINTERA 106 PER automatic die cutter with power register
Very nice automatic die cutter with stripping and blanking

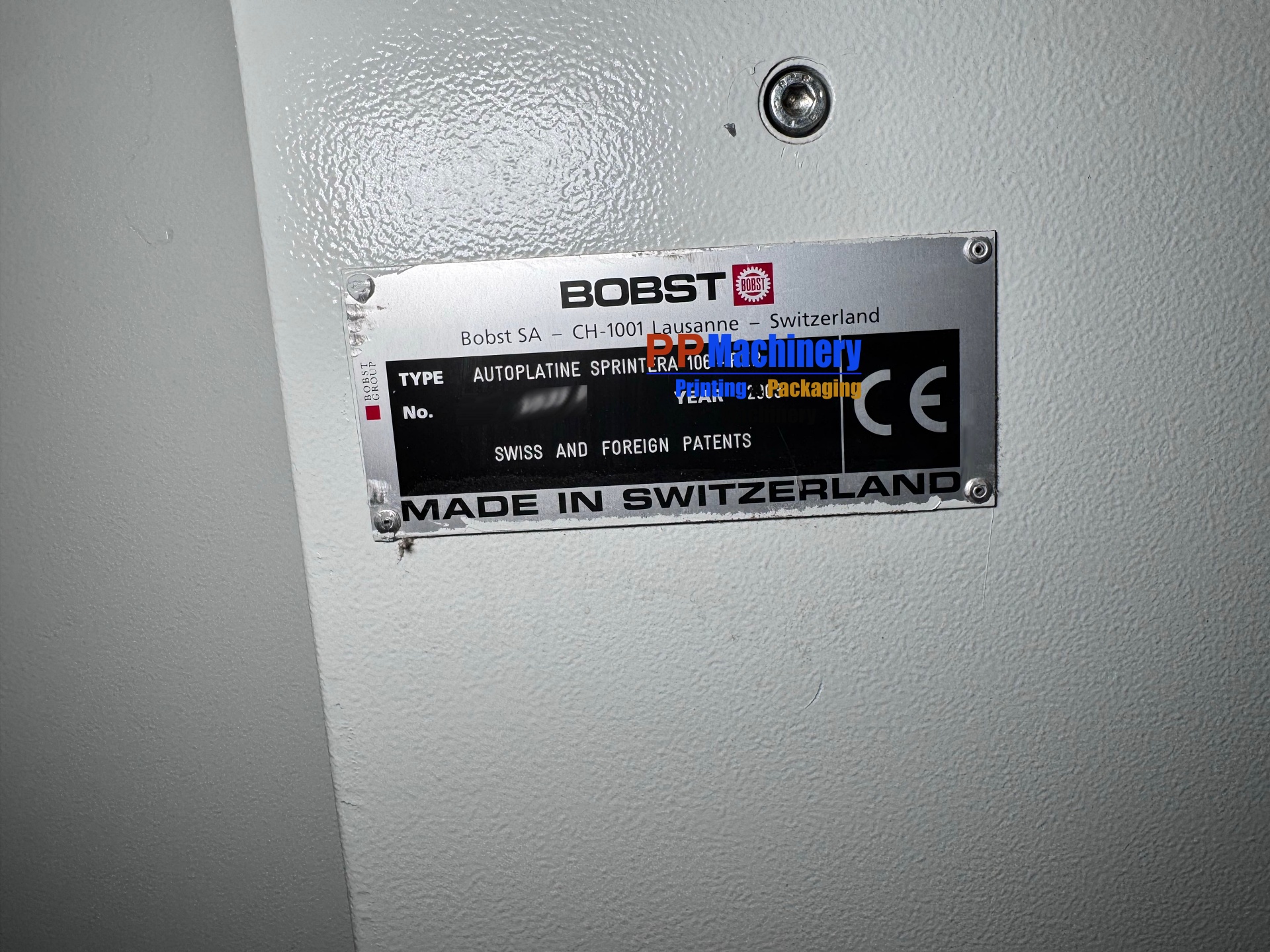

Manufacturer: BOBST S.A. SWITZERLAND
Year of manufacturing: 2003
Type: Sprinthera 106 PER
BOBST SPRINTERA 106-PER Flat Bed Die Cutter, 740 x 1060 mm
Last overhauling in 2023
The machine is in EXCELLENT condition, can be inspected in production at any time and is immediately available.
Machine Specs:
NON Stop Feeder with automatic lateral shifting of the pile tray
Feeder with POWER REGISTER, double sheet control and automatic tension control and sheet guide

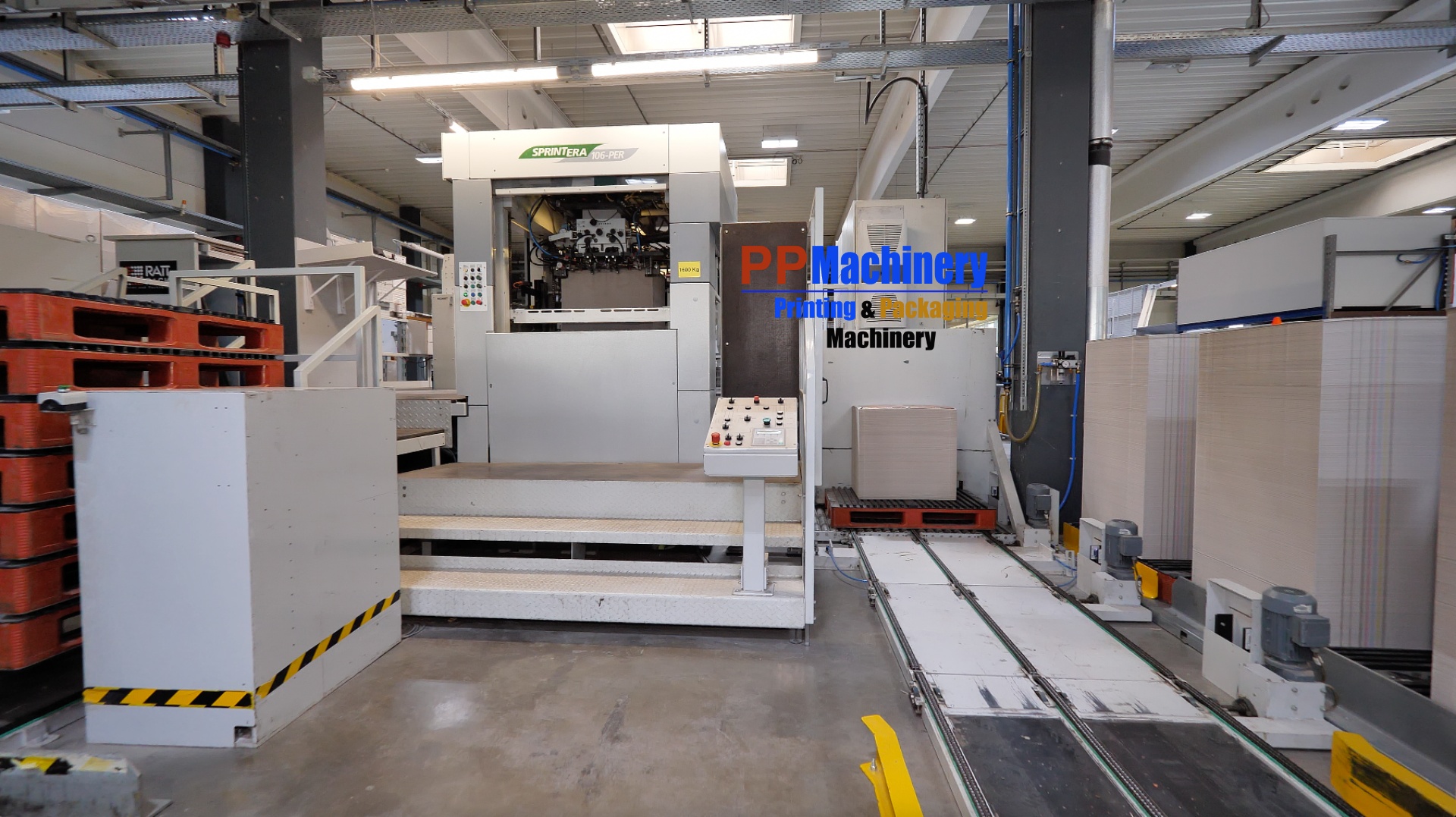

Krifft & Zipsner Pallet Infeed System
Die Cutting Unit with Centerline System
2 Stripping Stations with Bernoulli System

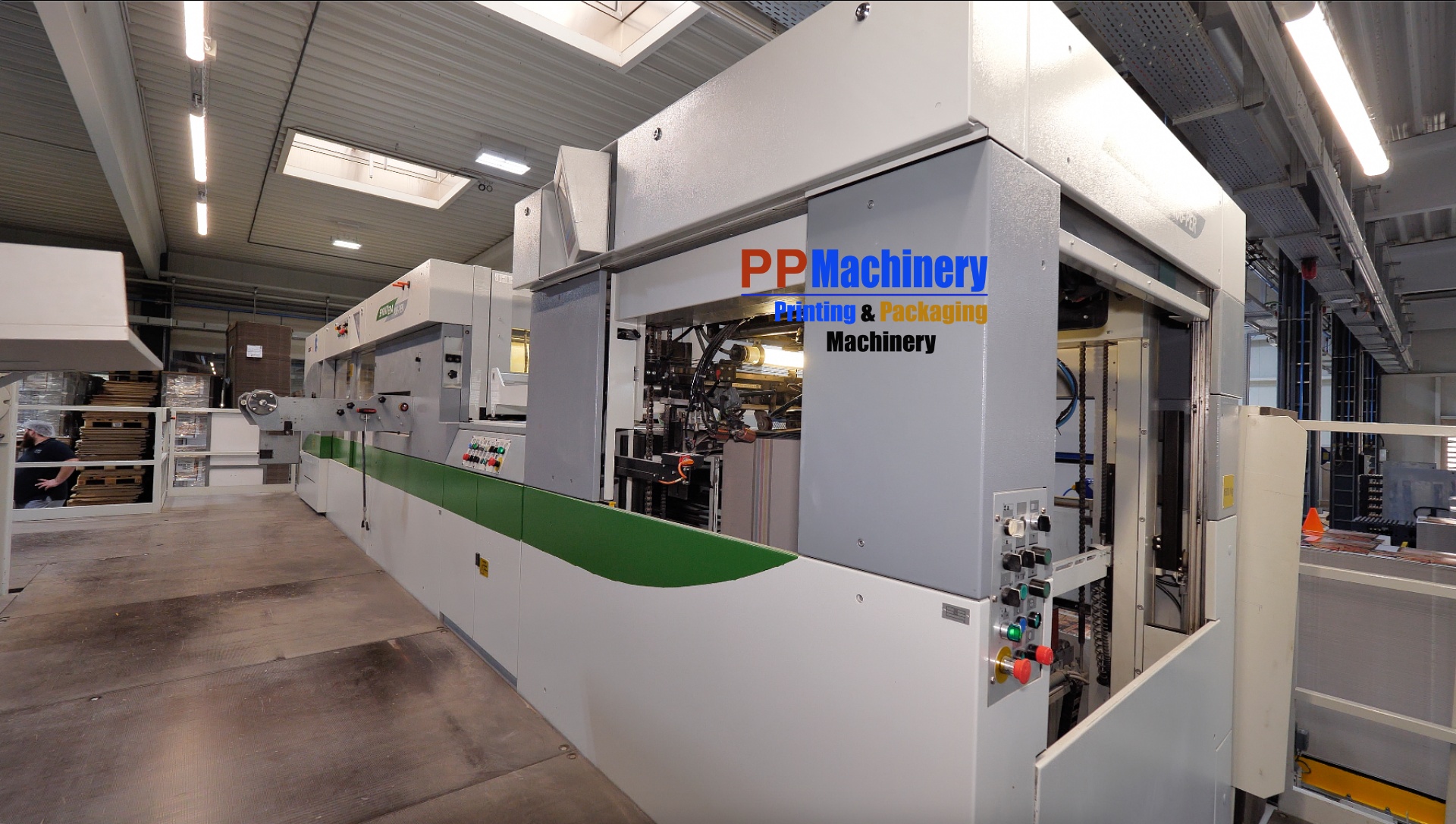

Blank Pile Delivery with automatic pallet changing device
Technical Details:
Materials:
Paper min. 70 g/m2
Board up to 2000 g/m2
Corrugated board, up to 4 mm
Max. sheet size: 740mm x 1060mm / 29″ x 41.75″
Min. sheet size: 350mm x 400mm / 350mm x 400mm / 14″ x 15.75″
Max. mechanical speed: 12000 s/h
Cutting force up to 2.6 MN
Max. pile height feeder and delivery: 1700 mm / 67″
Main motor power: max. 22 kW
Total connected load: max. 63 kVA
Krifft & Zipsner logistic installation, new hydraulic pump and change of all worn out parts.
Machine is available immediately
