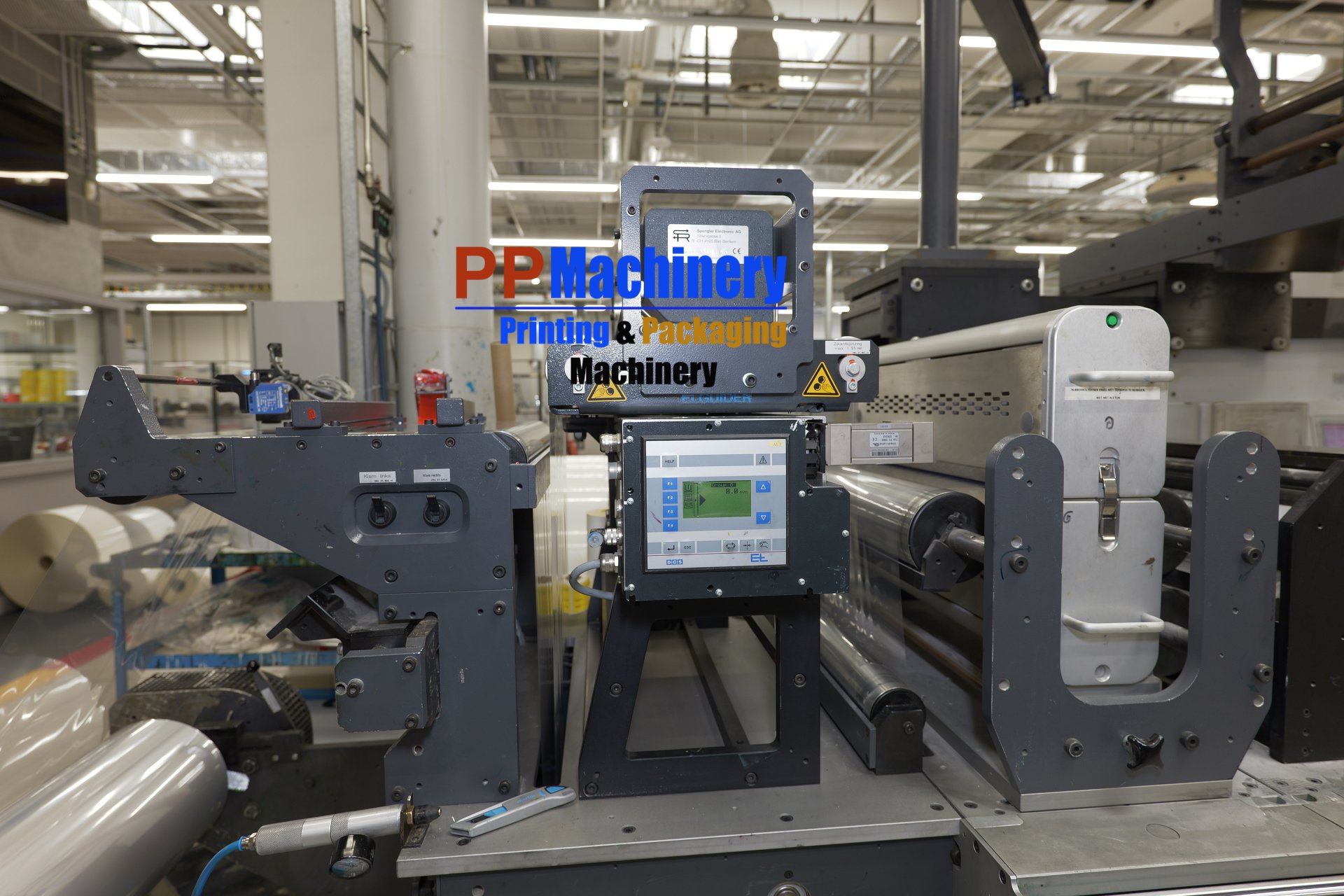

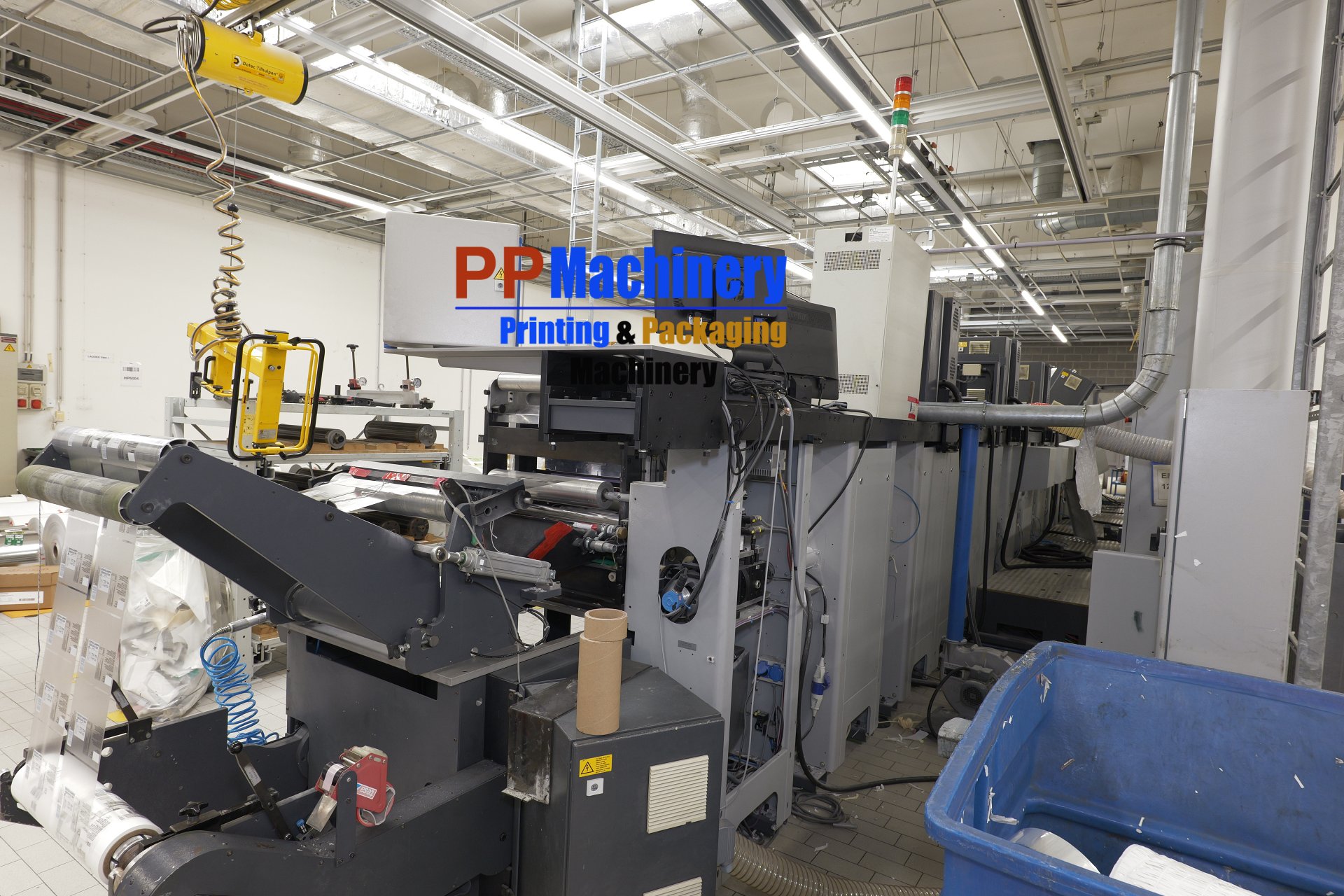

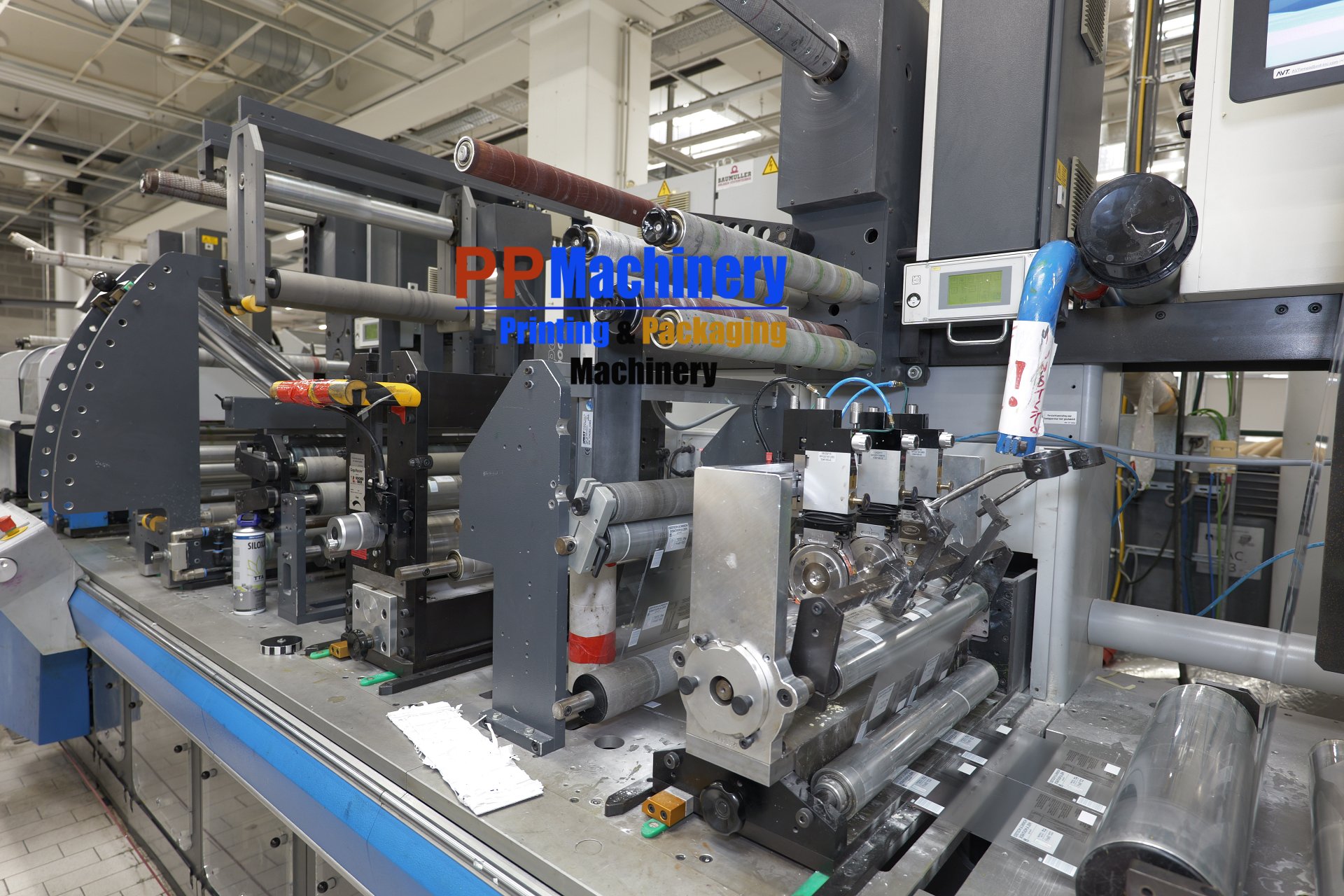

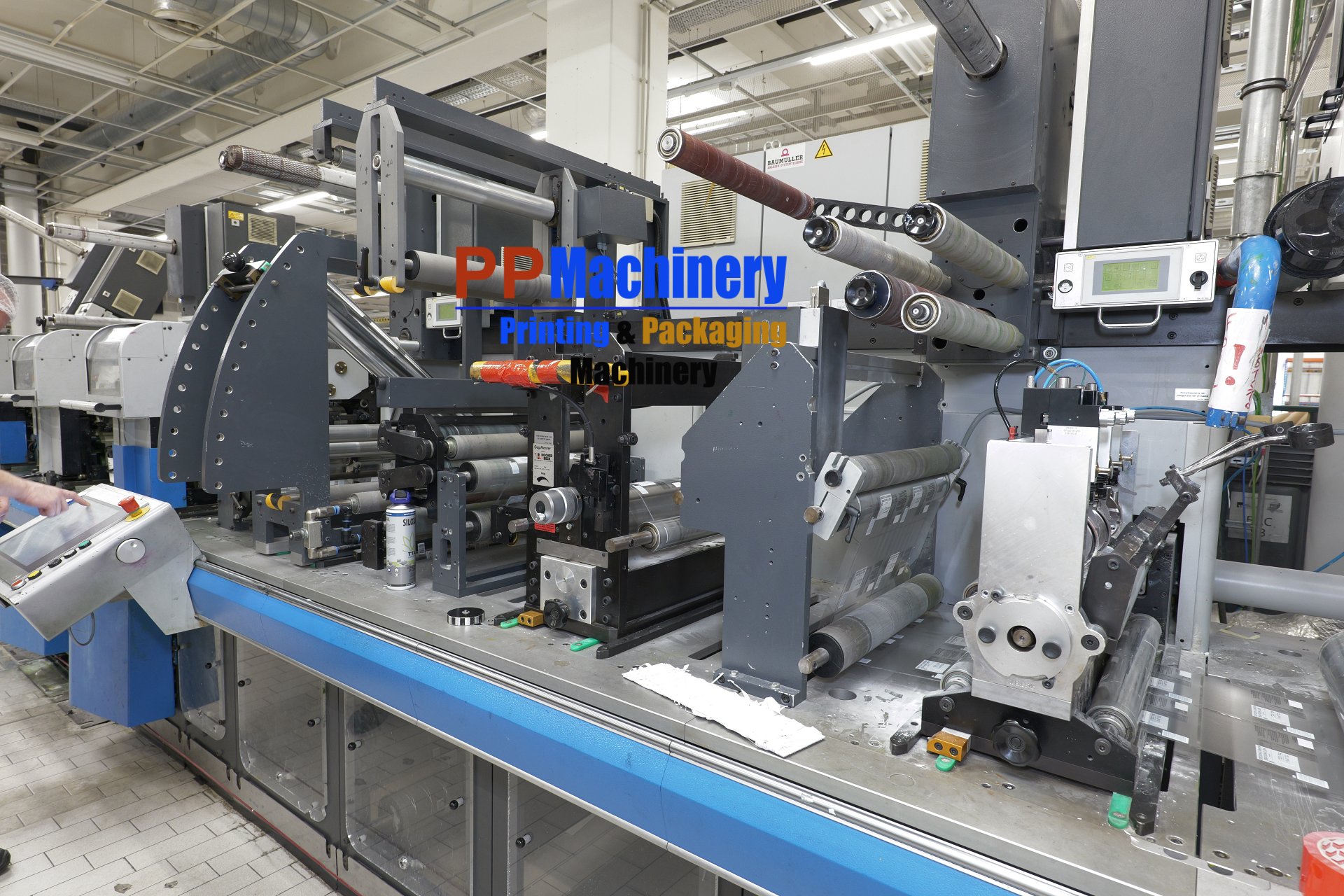

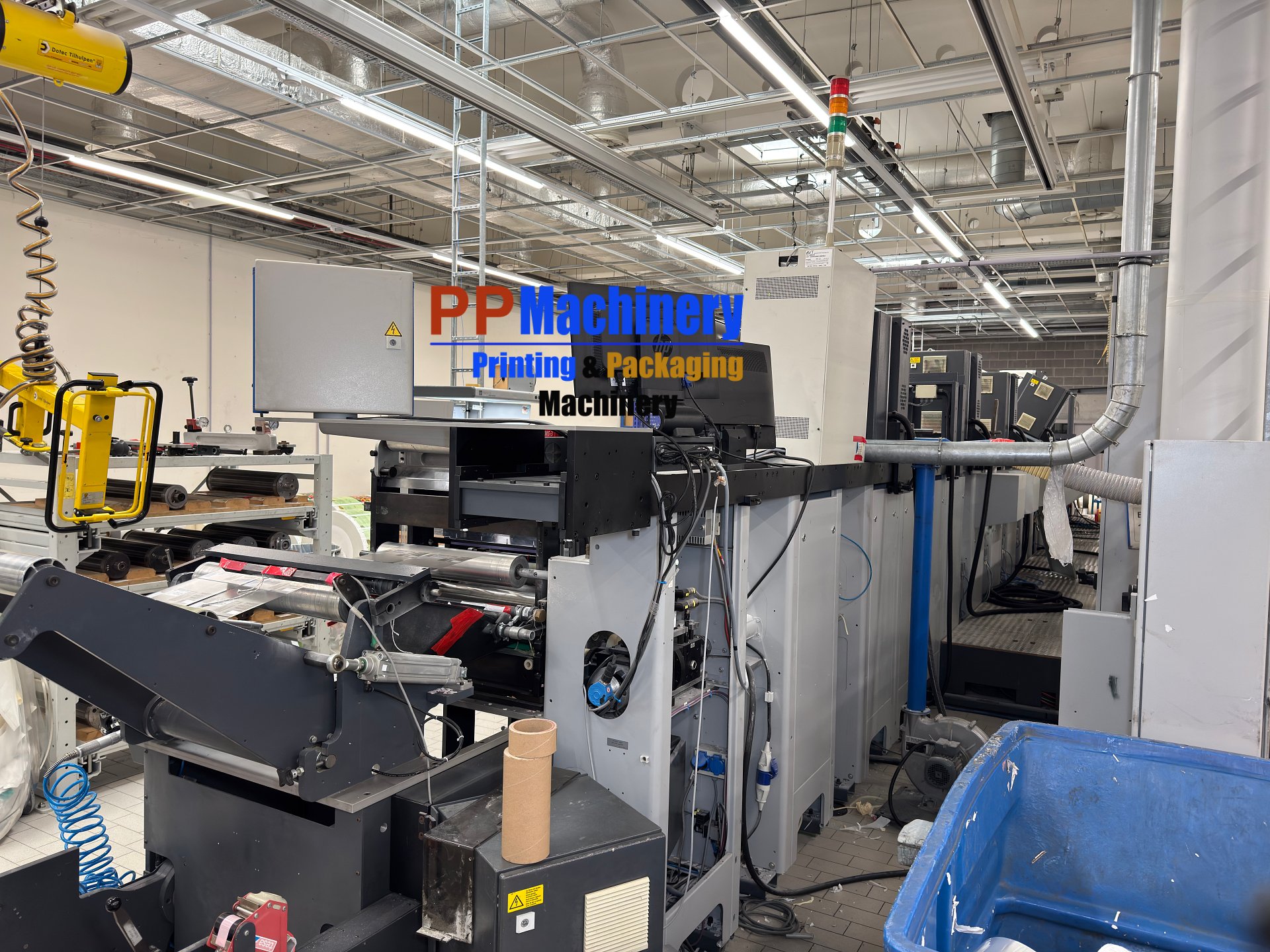

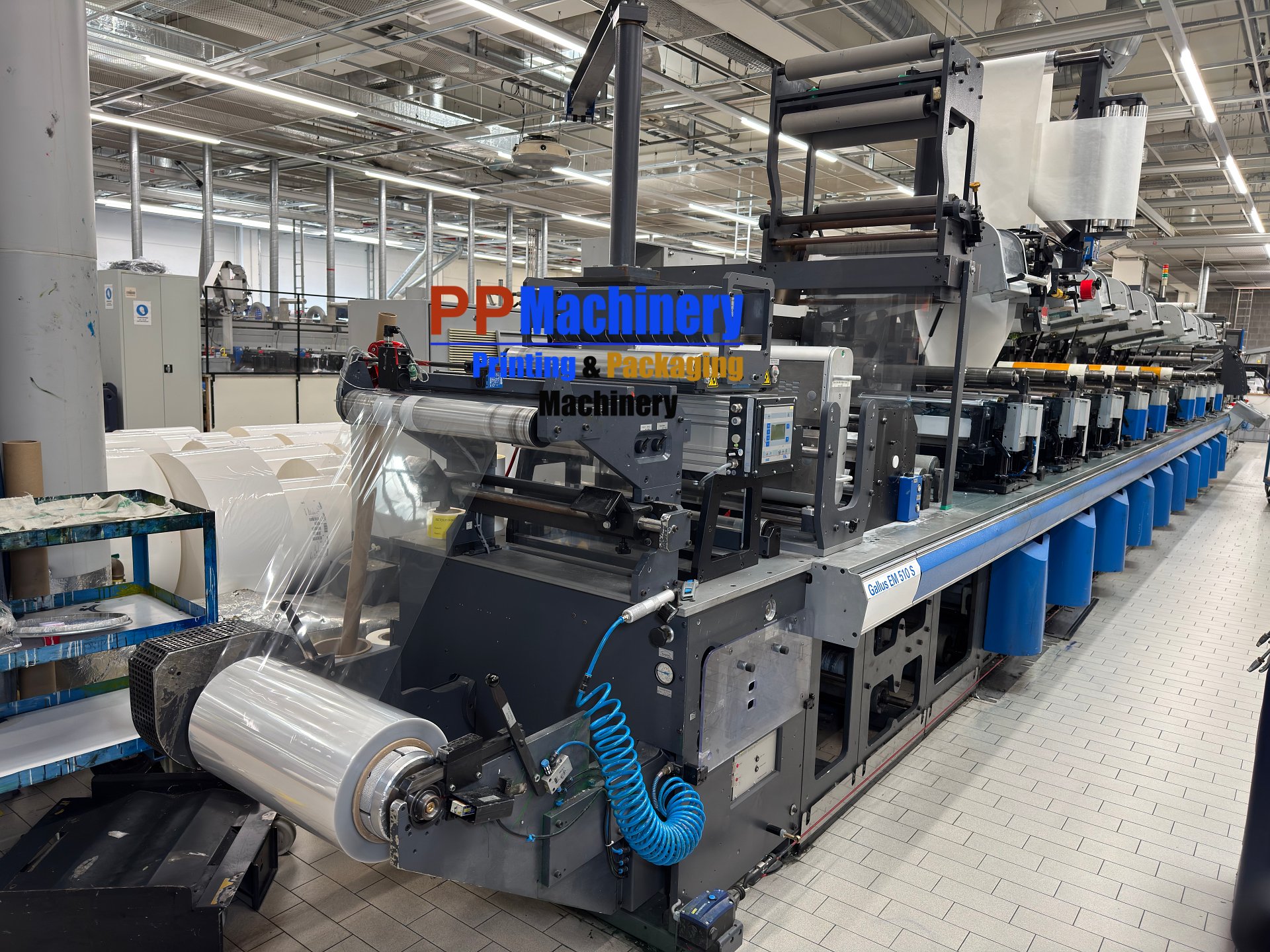

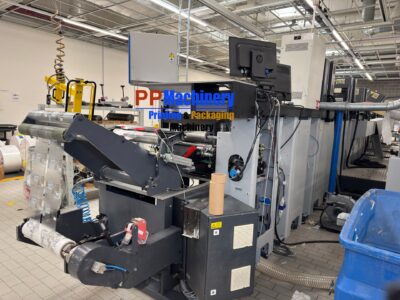

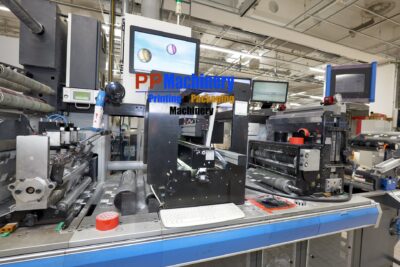

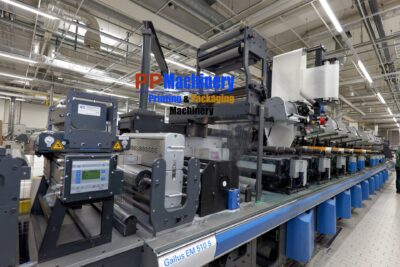

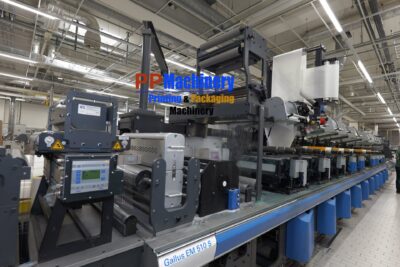

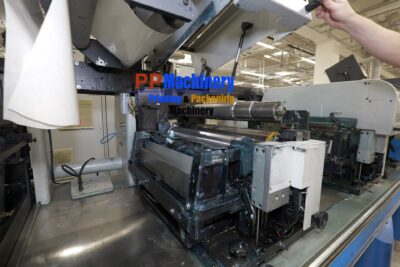

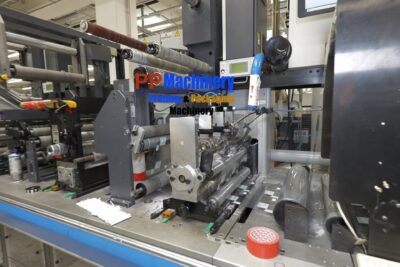

Gallus EMS 510 S
- Year of manufacture: 2009
- Print units: 10 flexo printing units
- Screen printing: 3 screen printing units
- Specialty units: 1 printing unit for tinting/solid coating
- Web handling: Rail-mounted turn bar with 5-color recto / 5-color verso capability
- Adhesive side printing: Capability for 2 colors on the adhesive side
- Die-cutting: * 1 die-cutting unit equipped with Kocher+Beck GapMaster
- 1 fixed additional die-cutting unit
- 1 mobile die-cutting unit
- Finishing (Rail-mounted):
- Rail-guided cold foil unit
- Rail-guided lamination unit
- Drying & Curing: * UV drying system
- Hot air drying unit
- Control Systems: * Sensotec register control
- Erhardt+Leimer web guiding system
- Processing Units:
- Tidland slitting unit
- Teknek web cleaning system
- Ionization (Static elimination)
- Web break detection
- Corona treatment unit
- Inspection: AVT Helios 660 inspection system
- Output:
- Web shifting device
- Product output via conveyor belt (sheeter)
SPECS:
Key Specifications (Gallus EM 510 S)
Max Web Width: 516 mm (20 5/16”)
Min Web Width: 254 mm (10”)
Max Printing/Processing Width: 510 mm (20”)
Max Roll Diameter: 1,520 mm (60”)
Flexo/Screen Print Repeat Range: 304.8 mm (12”) to 660.4 mm (26”)
Rotary Processing Repeat: 381 mm (15”) to 609.6 mm (24”)
Register Accuracy (Print to Print): +/- 0.1 mm (0.004”)
Electrical Requirements: 440 Volts / 3 Phase / 50-60 Hz / 500 Amps
Machine System Control: Central control concept with advanced servo drives (retrofitting available) Drive Technology: Full Servo Direct Drive (gearless)
