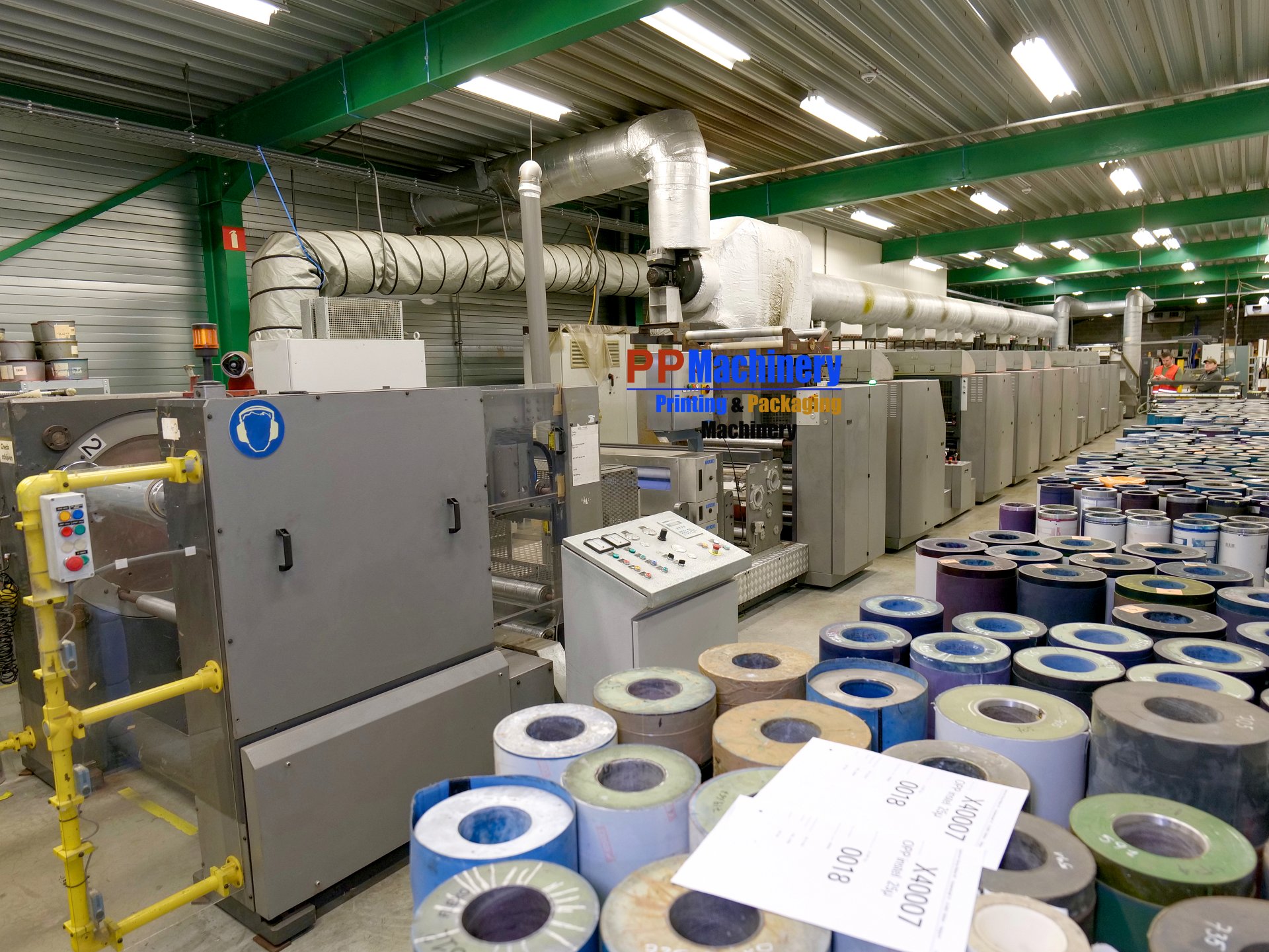

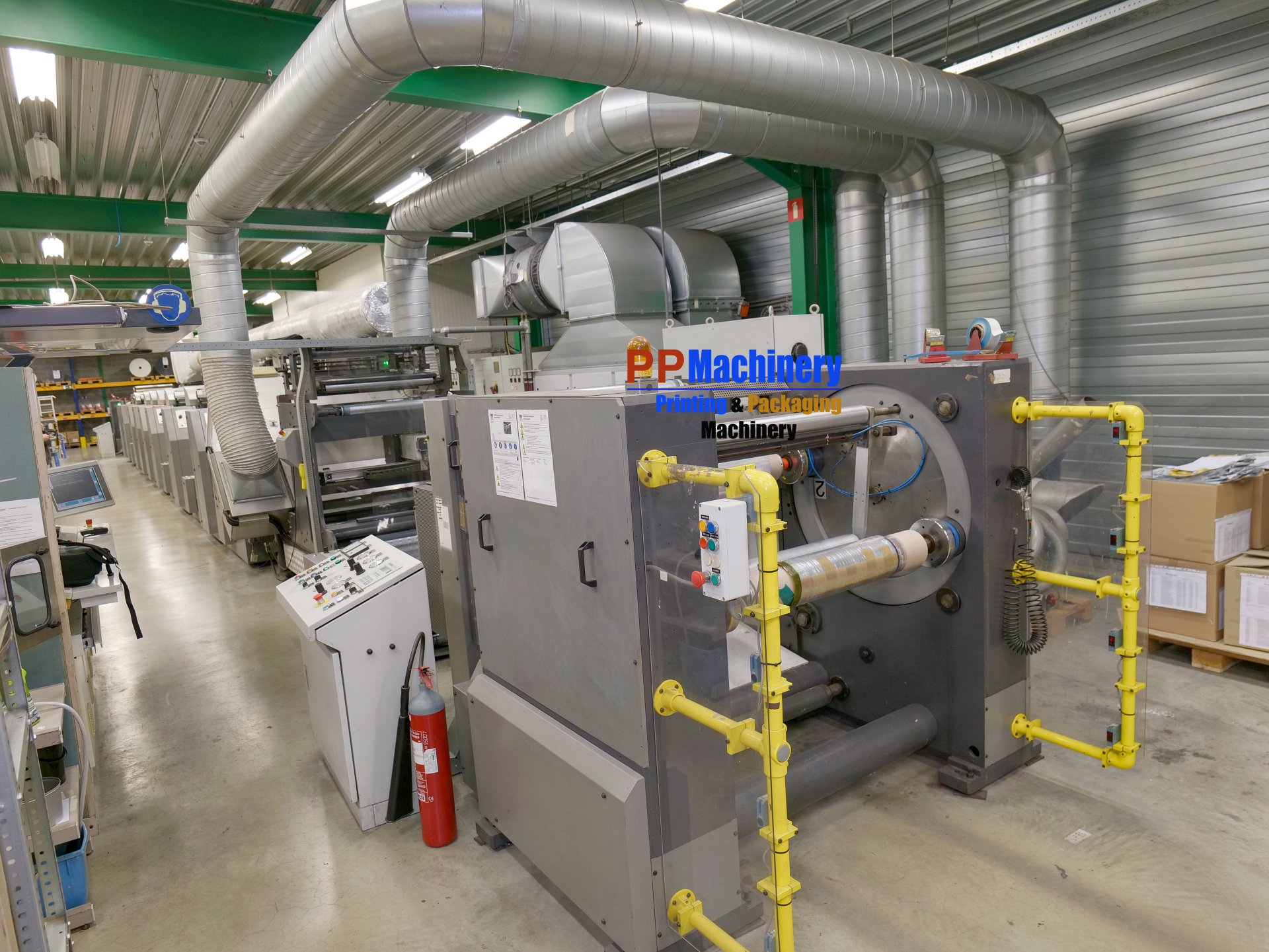

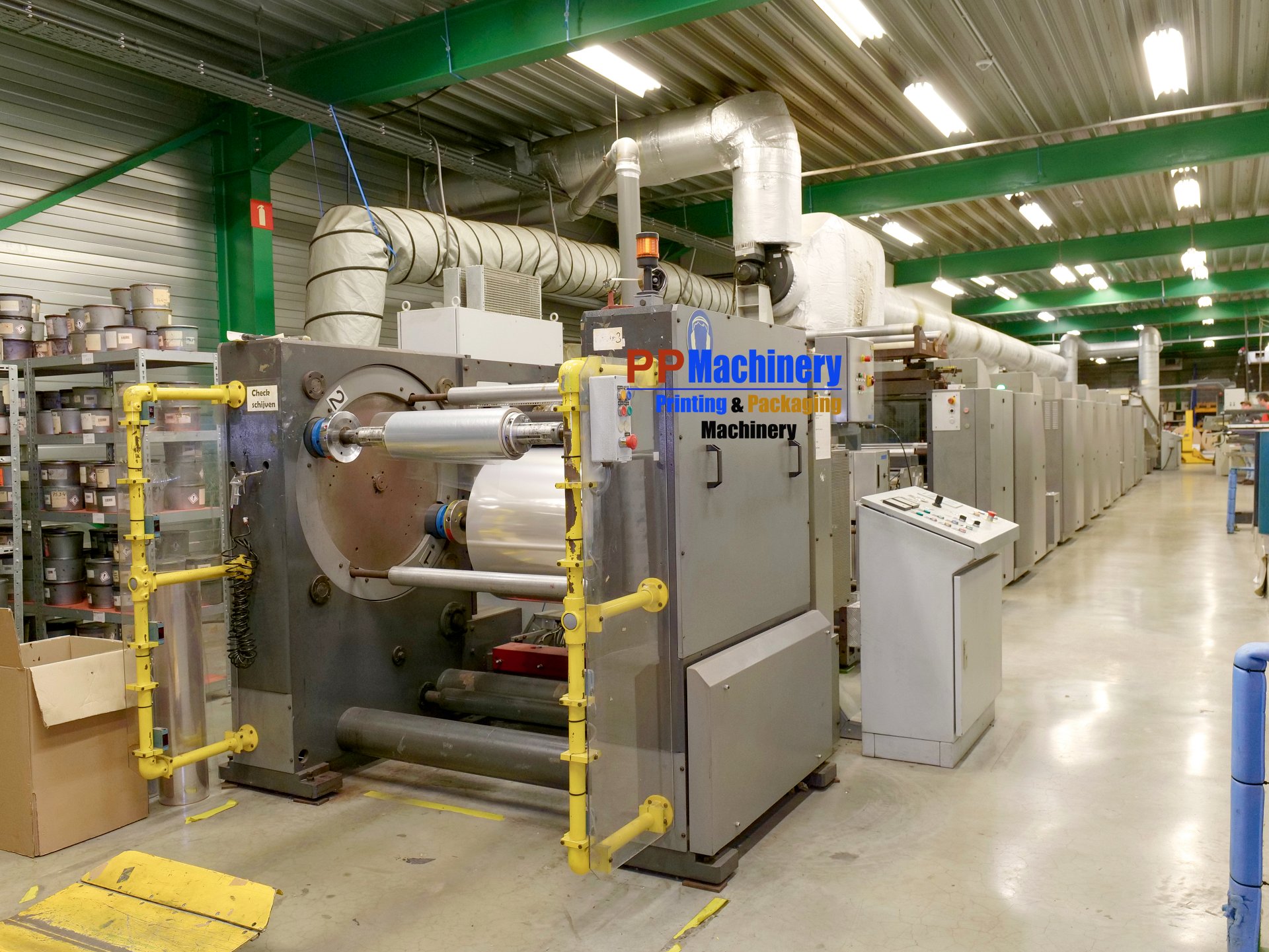

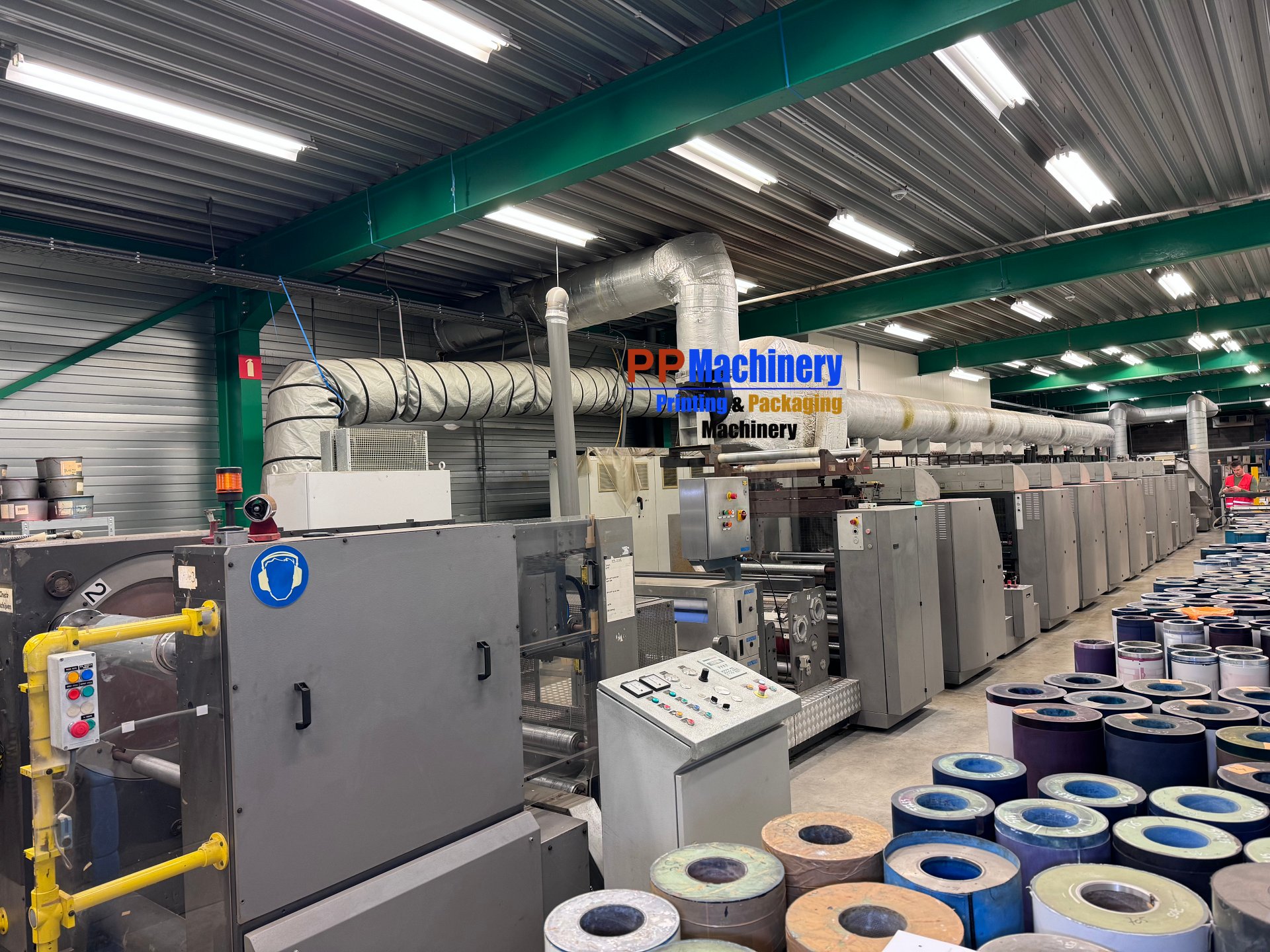

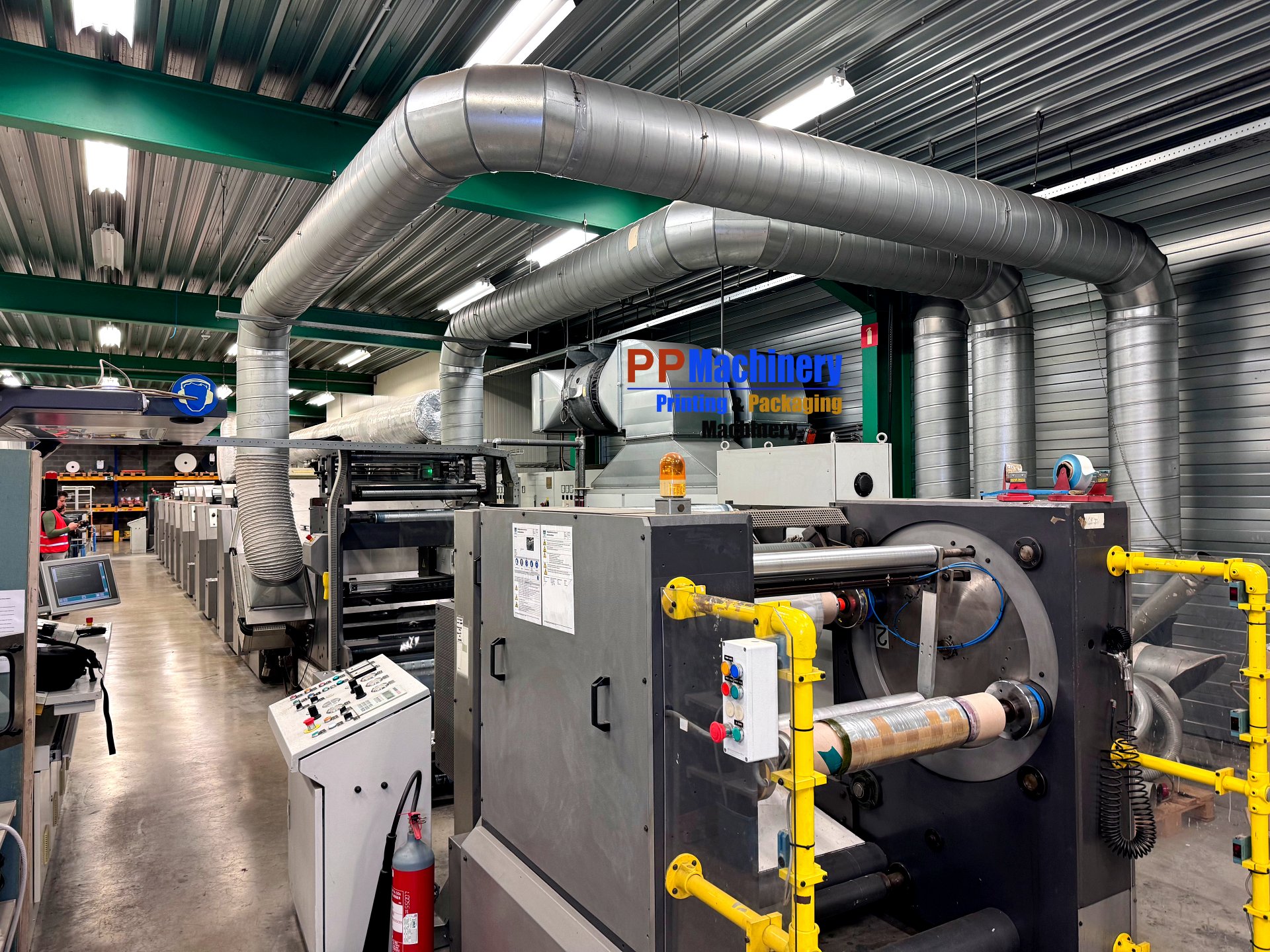

DG Press 7 Colour VSOP®-850 Roll to Roll offset press

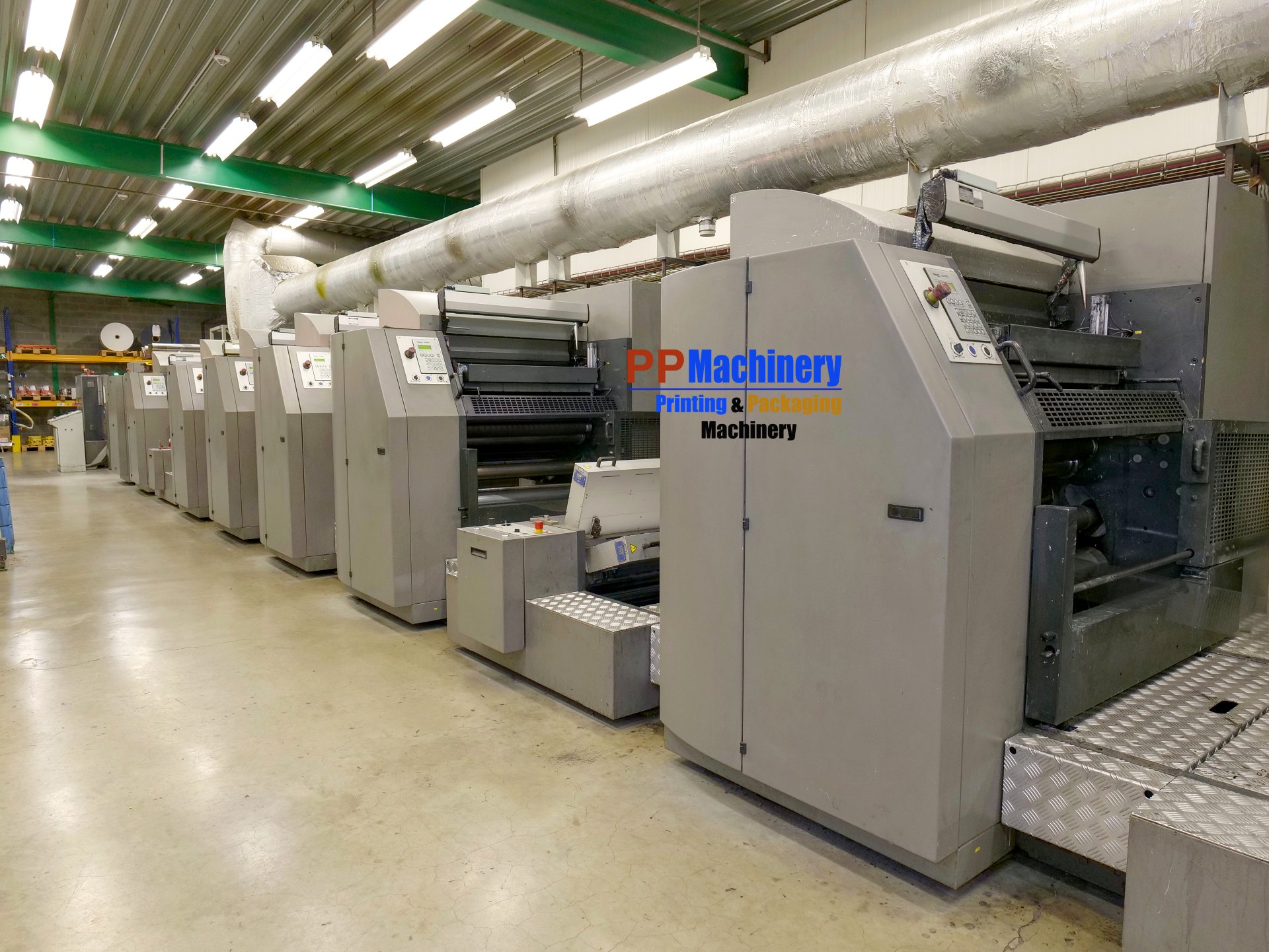

- 7 offset printing units
- 7 printing units
- 1 Flexo insert in Printing Unit 7 + hot air dryer
- 7 UV dryers from IST
- All printing units are equipped with chilled rollers

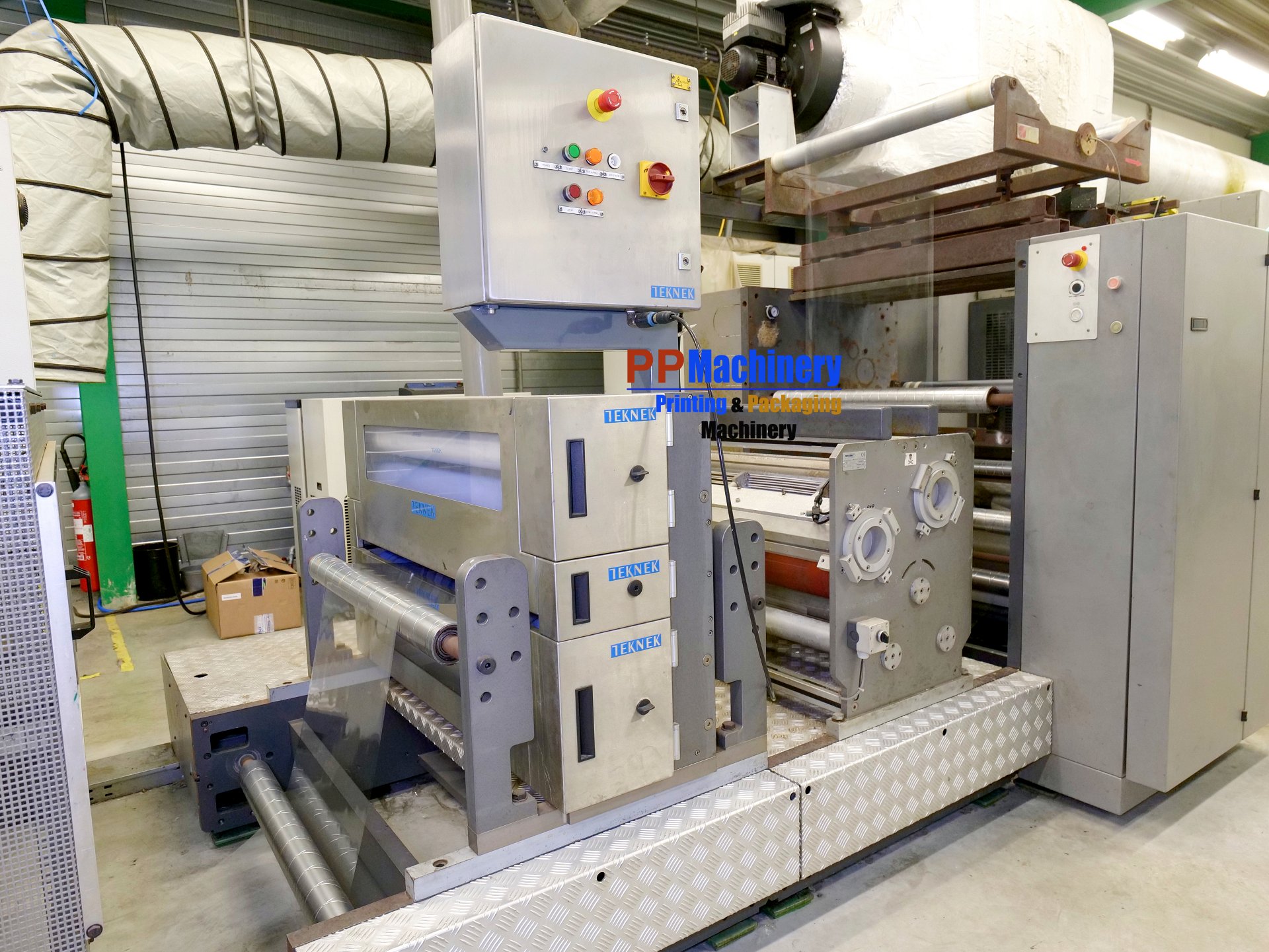

- Teknek web cleaner
- Corona treatment on one side
- Autotamic Register from Offcon
Machine Specs:
Manufacturer: DG Press
Type: VSOP® 850
Year of production: 2005
Web width: 850 mm (33,5”)
Max. printing width: 840 mm (33,07”)
Minimum working width: 200 mm (7,87”)
Min repeat legth: 381 mm
Max. repat legth: 762 mm

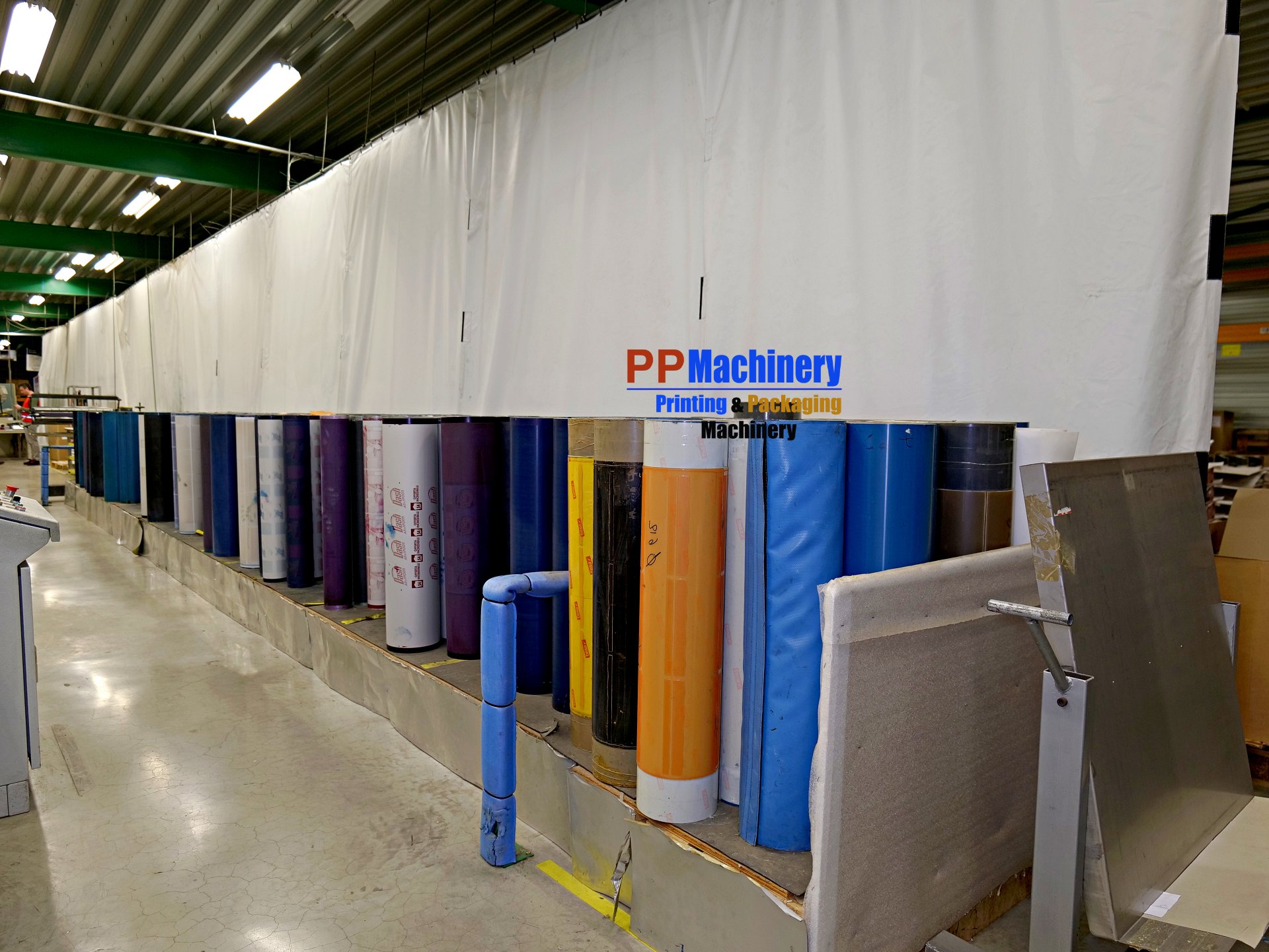

Set of sleeves:
406,4mm
423,3mm
577,8mm
591mm
612mm
613mm
643,4mm
653,6mm
678mm
692,1mm
705,6mm
719,6mm
735mm
755,8mm.
Flexo: Same size for all sizes
Substrate thickness:
Paper: 20μm – 350μm
Aluminium: 15μm – 75μm
Foil: 12μm – 350μm
Machine is available immediately
Test possible
Please contact us for more details
