Astronova Trojan T3-OPX Direct-to-Package Printing
Operation:
- Ink Type: Pigmented ink, 4 Individual CMYK cartridges
- Print resolution: 1200 x 1200 dpi
- Print speed: Up to 18 ips (27m/min)
- Print Area: Width: 11.7” (297mm)
- Media Sensors: Optical TOF sensor, adjustable position, pressure sensor for height control
- Connectivity: 802.3 LAN (10/100/1000) Ethernet port
- Software: TrojanControl Software RIP
Environmental & Physical:
- Printer operation: Operation 15° to 30° C (59° to 86° F); Transport –40° to 60° C (–40° to 140° F); Relative humidity 20 to 80%; Altitude 0 to 3048 m
- Power requirements: TBD
- Power consumption: TBD

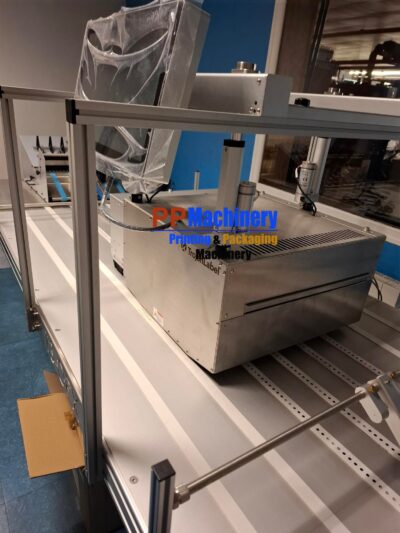

- Print unit dimensions: Width 518 mm, Length 516 mm, Height 290 mm (excluding height adjustable bracket)

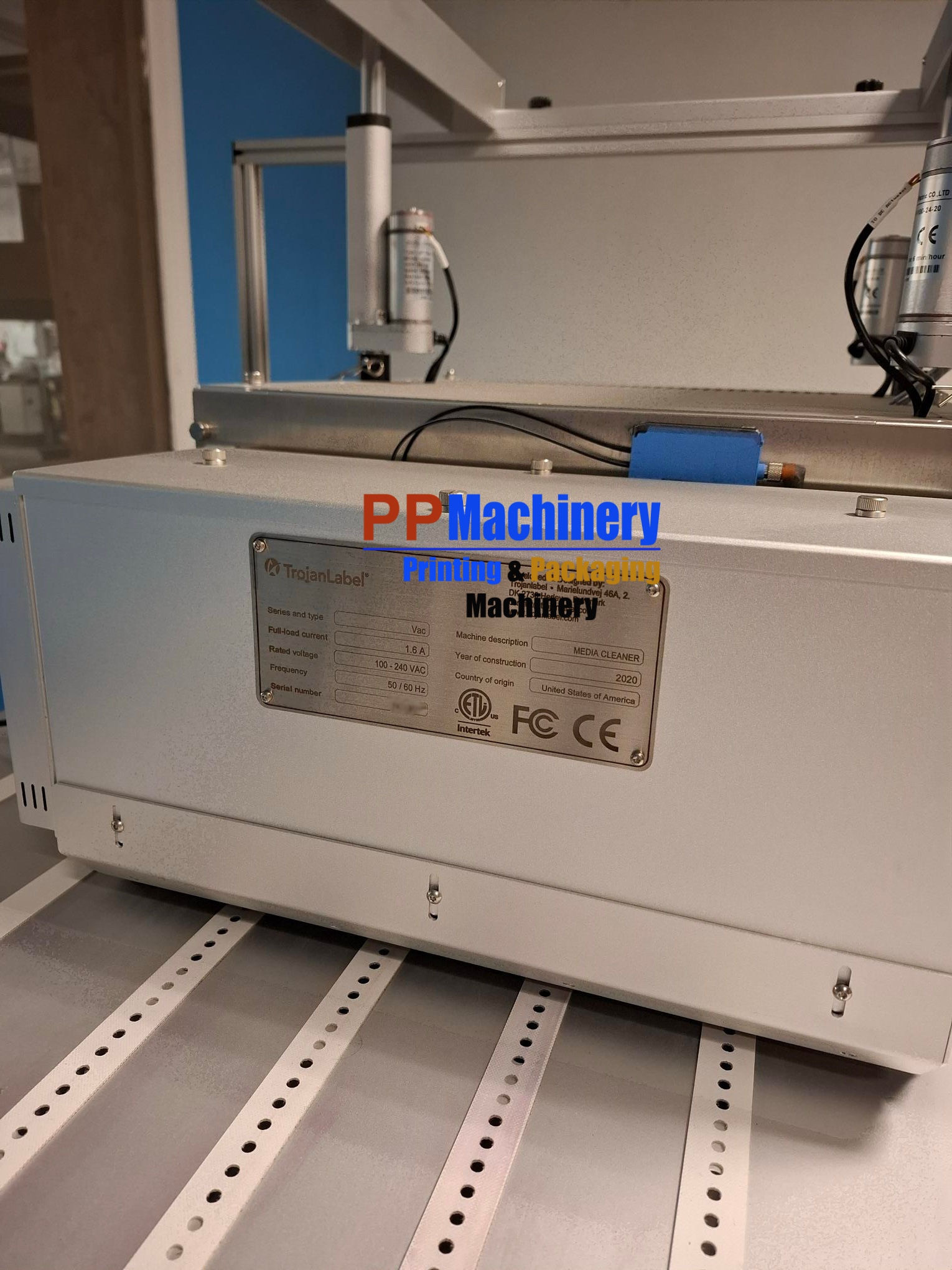

- Media cleaning unit dimensions: Width 457.5 mm, Length 154 mm, Height tbd
- Touchscreen: 15.6”
- Print unit weight: 20 kg
- Media cleaning unit weight: 3.5 kg
Supplies:
- Ink Cartridges: CMYK pigmented; C: 238 ml, M: 233 ml, Y: 225 ml, K: 498 ml; ISO pages: K: 20.000 pages, CMY: 16.000 pages
- Maintenance: Replaceable service tray
- Ink Type: Pigmented aqueous inks
- Average drop volume: 10 pl K, 8.5 pl CMY
Material:
- Types: Uncoated Paper, Card board, paper board
- Width: Depends on transport/installation, 600mm (Trojan standard table), 1000mm (Trojan wide table)
- Length: 35.5”
- Thickness: 0 – 100mm (automatic height calibration)
MailTable Standard (MT1):
- Speed: Up to 18 ips (27m/min)
- Power requirements: 100-240V AC – 50/60 Hz, 2.5A power supply)
- Dimensions: Width: 1026 mm (incl Emergency step), Length: 1507 mm, Height: From 892 mm to 595 mm
- Support material width: 600 mm
- Weight: Tbd
- Suction: 5 fans adjustable speeds
- Belts: 6
MailTable Wide (MT2):
- Speed: Up to 18 ips (27m/min)
- Power requirements: 100-240V AC – 50/60 Hz, 2.5A power supply)
- Dimensions: Width: 1026 mm (incl Emergency step), Length: 2007 mm, Height: From 890 mm to 590 mm (5 positions)
- Support material width: 1000 mm
- Weight: Tbd
- Suction: 5 fans adjustable speeds
- Belts: 8
