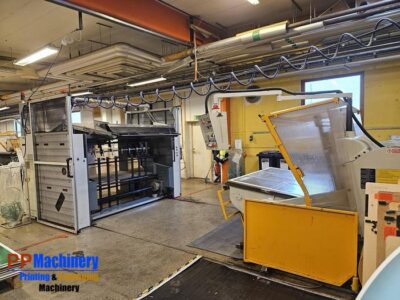

2000 RABOLINI F with FEEDER AND BATCH DELIVERY Max format
Specification IMPERIA F + feeder + Special batch Delivery
- 1 (one) S/H IMPERIA F 120x165cm with electronic feeder and special batch delivery system, delivered, controlled and checked with 6 months warranty

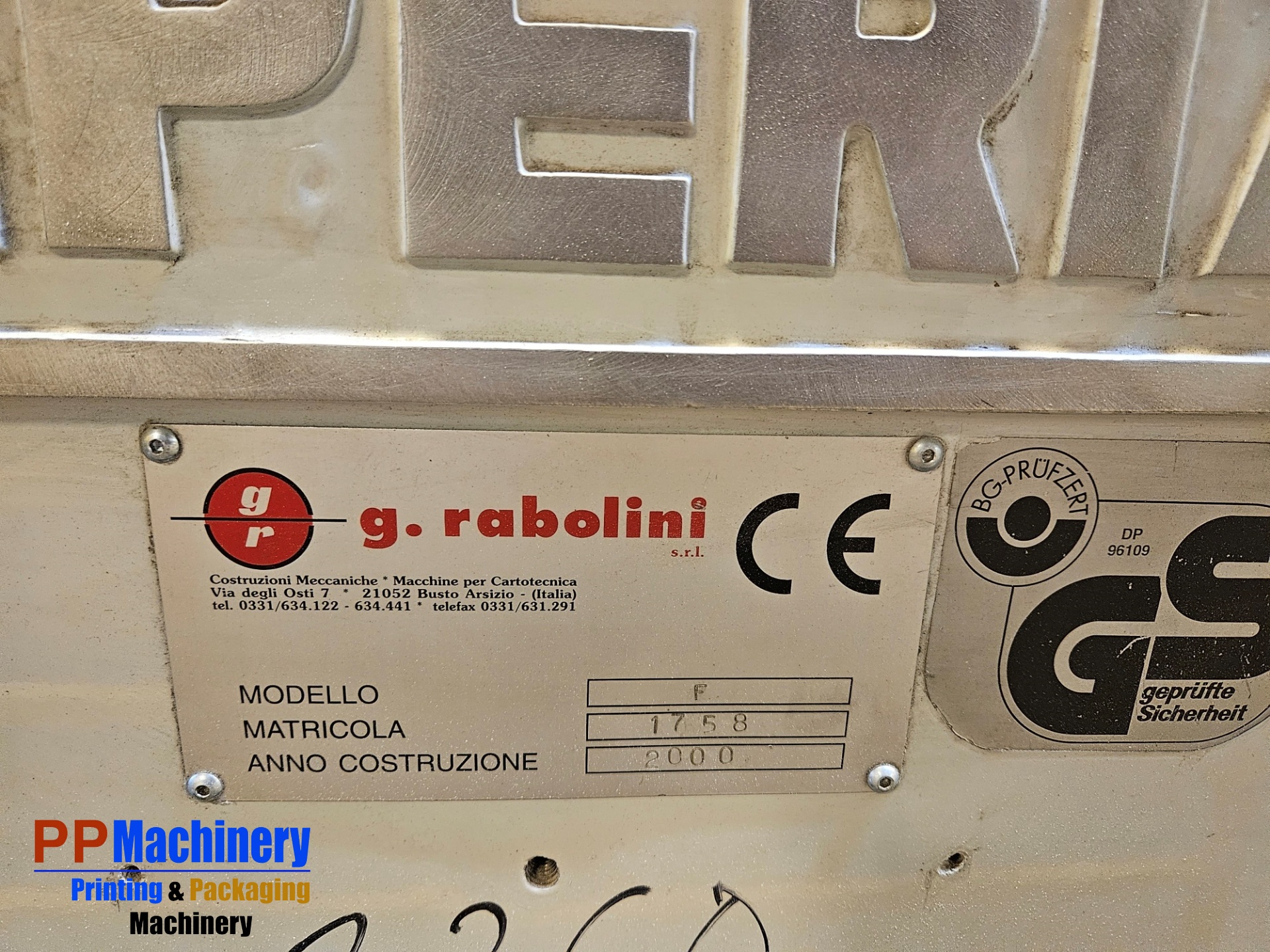

- Year of manufacture 2000

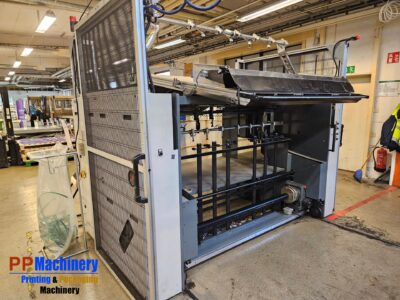

- with electronic feeder (no high pile)
- Speed Approx. 1350 strokes per hour
- min board thickness 400gr/m²
- Corrugated board thickness max 7mm
- pneumatic clutch- variable speed,
- Equipped according to CE regulations
- special suction cups with 50mm telescopic – pneumatically adjustable arms
- SPS System
- PICARD die cutting plate
- micrometric adjustment of the pressure in addition to the standard one
- special universal chase-mobile delivery table for conveying blanks, pneumatically controlled with automatic lowering device allowing to the operator to have available a batch of blanks to remove. Entrance 1000mm – Exit 80mm.
Specifications
- Max sheet size mm 1660 x 1200
- sheet size mm 700 x 500
- cut to cut form size mm 1640 x 1190
- Feed Pile Height mm 1020
- delivery blanks batch height mm 80
- Adjustable mechanical speed (strokes per hour) mm 900 – 1400
- Variable Speed motor power HP 15 – KW 11
- Total required Power KW 15
- Required Compressed Air Bar 5,5
- substance flat board sheet (rigid sheet is requested) gr/m². 400
- thickness solid boards mm 1,6
- thickness corrugated paper board sheet mm 7
- Platen installed power KW 12
- Pressing Capacity Kg 000
- Mechanical variable speed(with inverter unit):range available s/hour 900 -1300
- Weight of the complete platen machinery, about 13
- Machine suitable to fit a standard form 23,8
- Net Weight Machine Kg 500
- Overall dimensions mm 7000 x 3200 x 2600(h)
