ACCESSORIES
MARTIN MBS Automatic Butt Splicer (Year 2020)
Used Automatic Butt Splicer for Efficient Web Processing
Available for sale is a used MBS Automatic Butt Splicer, manufactured in 2020. This machine is designed to provide reliable and precise automatic butt splicing during roll changes, helping to minimize downtime and maintain continuous production.
With its robust construction and proven technology, the MBS Automatic Butt Splicer is an excellent solution for companies seeking a cost-effective alternative to new equipment while maintaining high production efficiency and splice quality.
Key Features
- Year of manufacture: 2020
- Automatic butt splicing operation
- High splice accuracy and process reliability
- Reduced production downtime during roll changes
- Robust industrial design
- Suitable for integration into existing production lines
- Cost-effective alternative to a new machine
Technical Information
- Model: MBS Automatic Butt Splicer
- Year: 2020
- Condition: Used
- Availability: Upon request
Benefits
- Increased production efficiency
- Reliable web splicing performance
- Lower investment cost compared to new equipment
- Short lead time and immediate availability
- Proven industrial technology
Condition
The machine is offered in used condition and is available for inspection upon request. Additional technical details, photographs, and documentation can be provided.
Availability
Available immediately, subject to prior sale.
ABG International Vectra ECTR 410 from 2009
ABG International Vectra ECTR 410 automatic turret rewinder (2009 model)
- Maximum web width: 410 mm
- Maximum rewind diameter: Up to 350 mm
- Mechanical speed: Up to 150 m/min (depending on mandrel size)
- Spindle system: 4-spindle turret rewinder
- Standard mandrel size: 76 mm (3 inches) air shafts
- Cycle time: Full cycle in approximately 8 to 10 seconds
- Tension control: Precise, constant automatic web tension
- Core functions: Automatic roll ejection, counter (labels or meters)
This machine is available immediately – pleaese contact us for more information
Printum Stäudle Digital 350 label converting line from 2019
Printum Stäudle Digital 350 label converting line from 2019
Manufacturer: Printum
Model: Staudle Digital 350
Year of manufacture: 2019
Equipment:
- Unwinder
- Web Guide
- Corona treatment
- Nip rollers
- Gallus Printing unit
- GEW UV Dryer
- Buffer
- 2. Web guide
- BST Eltromat Inspection Camera
- Control Unit with touch screen
- Rotary die cutter with GapMaster
- 2. Buffer
- Slitting unit
- Double Rewinder
Processing width: 350 mm
Minimum web width: 330 mm
Maximum web width: 100 mm
Maximum web speed: 100 m/min
Machine is available immediately.
SMAG GALAXIE DIGITALE III 340 mm from 2016 label converting line
Technical Specification: SMAG Galaxie Digital (2016 Model)
Type: Modular converting and finishing system for self-adhesive labels.
- Unwinding Unit
- Servo-driven unwinder supporting roll diameters up to 650–700 mm.
- Standard web tension control system for consistent material flow.
- Integrated splice table with mechanical or pneumatic web clamping.
- Web Guide System (E+L)
- System: Erhardt + Leimer (El Guider).
- Function: Proven sensor-controlled web guiding to ensure correct material positioning prior to the processing modules.
- Corona Treatment
- Integrated corona station for surface energy treatment.
- Purpose: Improves ink and varnish anchorage, particularly useful for synthetic or non-absorbent digital print substrates.
- Flexographic Coating Unit
- Configuration: Servo-driven flexo unit designed for full-surface or spot varnishing.
- Curing: Standard UV drying system (mercury vapor lamps).
- Technology: Precision anilox roller system for consistent varnish application.
- Semi-Rotary Die-Cutting Unit
- Technology: Servo-driven die-cutting module.
- Mode: Semi-rotary operation, allowing for variable repeat lengths without the need to change magnetic cylinders, significantly reducing setup times for short-run production.
- Registration: Optical mark registration system for accurate die-cutting in relation to the digital print image.
- Slitting Unit
- System: Standard shear knife or razor blade slitting station.
- Function: Precise longitudinal cutting of the web.
- Waste Management: Integrated trim extraction/vacuum system for edge waste.
- Rewinding Unit
- Rewinder with adjustable tension control to ensure high-quality, stable roll formation.
- Standard air-expanding shaft for 76 mm (3 inch) cores.
Machine Highlights (2016 Edition)
- Control System: Established HMI interface for machine monitoring and parameter setting.
- Efficiency: Designed for the challenges of 2016-era digital print finishing, focusing on high reliability and reduced waste during setup.
- Application: Optimized for finishing mid-to-short run digital labels, providing reliable varnish and die-cutting quality in a single, streamlined process.
Iwasaki TR2 Label Press (2004) -High-Quality Intermittent Offset Label Printing Solution
Iwasaki TR2 Label Press (2004)
High-Quality Intermittent Offset Label Printing Solution
Available immediately, this Iwasaki TR2 from 2004 is a versatile and highly productive label printing press designed for premium label production. The machine combines intermittent offset printing, flexographic varnishing, hot foil stamping, and die-cutting capabilities in one efficient production line.
Key Features
- 5 intermittent offset printing units
- 1 intermittent flexographic varnishing unit
- 1 intermittent rotary die-cutting unit
- 2 hot foil stamping units
- 1 flatbed die-cutting unit
- Waste rewinder
Technical Specifications
| Manufacturer | Iwasaki |
| Model | TR2 |
| Year | 2004 |
| Printing Process | Intermittent Offset |
| Number of Colors | 5 Colors |
| Offset Printing Units | 5 |
| Flexo Varnishing Unit | 1 Intermittent Unit |
| Rotary Die Cutting | 1 Intermittent Unit |
| Hot Foil Stamping Units | 2 |
| Flatbed Die Cutting Unit | 1 |
| Waste Rewinder | Included |
| Availability | Immediately Available |
Applications
- Self-adhesive labels
- Premium product labels
- Cosmetic labels
- Pharmaceutical labels
- Wine and beverage labels
- Security and decorative labels
For further information, technical details, pricing, or inspection arrangements, please contact us.
ABG Vectra 410 mm 16 inches – Automatic Turret rewinder – Nice machine for long runs
ABG Vectra 410 mm 16 inches – Automatic Turret rewinder – Nice machine for long runs
ABG Vectra STR 410 Autmatic Turret Rewinder
Machine Details:
- Manufacturer: ABG International
- Product Line: Vectra
- Model: ABG Vectra STR 410 (Turret Rewinder)
- Web Width: 410 mm (16″)
- Date of Manufacture: August 2008
Characteristics oft he turret rewinder
- 410 mm web width
- Four-spindle turret rewinding system
- Automatic roll change capability
- Hot-melt tail sealing system
- Swing-arm mounted operator control panel
- Vectra-series machine frame and guarding
- 410 mm web width
- Automatic turret rewinding system
- Hot-melt tail sealing
- Manufactured: August 2008
- Supplied by ABG International, United Kingdom
- The electrical cabinet documentation
- The machine manual
Gallus EM 340 C Label converting line from 2010 – Slitting rewinding die cutting
Gallus EM 340 C Label converting line from 2010 – Slitting rewinding die cutting
Gallus EM 340 C – Machine Description
Machine Type: Label converting and finishing machine for narrow-web applications.
Manufacturer: Gallus Group
Typical Year of Manufacture (example machine):
2010
Technical Specifications
Maximum Web Width:
343 mm
Main Features and Equipment
- Unwinder
- Web edge guiding system
- Rotarx rotary die-cutting unit
- Touchscreen operator interface
- Automatic inserter control
- Rewinder
The Gallus EM 340 C is designed for label converting and finishing operations, including:
- Rotary die-cutting of self-adhesive labels
- Perforating
- Slitting
- Rewinding
- Label finishing and converting
- Small-scale decorative and finishing processes in narrow-web production
The machine is commonly used as an offline finishing solution in combination with printing presses from the Gallus EM series, providing efficient post-print processing of labels and packaging materials.
Gallus EM 340 C Label Converting Machine
The Gallus EM 340 C is a versatile narrow-web converting machine designed for high-quality label finishing applications. Equipped with rotary die-cutting technology, web guiding, touchscreen controls, and rewinding capabilities, it offers efficient and reliable processing of self-adhesive labels. Its modular design and compatibility with EM-series tooling make it an ideal solution for label manufacturers seeking flexible and productive finishing operations.
Prati TR400 Turret Rewinder 4 spindles automatic turret rewinder from 2015
Prati TR400 Turret Rewinder (2015)
General Description
The TR400 is a 4-spindle automatic non-stop turret rewinder designed for label converting and finishing lines. It enables automatic roll changes without stopping production and uses Prati’s glueless web-to-core attachment technology, eliminating adhesive consumption at roll start-up.
Technical Specifications
| Specification | Value |
| Model | Prati STARplus TR400 |
| Year | 2015 |
| Maximum working web width | 400 mm |
| Maximum mechanical speed | 200 m/min (material dependent) |
| Maximum roll-change (hooking) speed | Up to 110 m/min |
| Maximum rewind diameter (76 mm core) | 400 mm |
| Maximum rewind diameter (50 mm core) | 300 mm |
| Maximum rewind diameter (40 mm core) | 290 mm |
| Maximum rewind diameter (25 mm core) | 250 mm |
| Minimum lane width | 25 mm |
| Machine dimensions (L × D × H) | 1550 × 2160 × 2100 mm |
| Electrical supply | 3 × 400 VAC + N, 50 Hz |
| Pneumatic supply | Clean, dry air at 6 bar |
Standard Machine Configuration
- 4-spindle glueless turret rewinder
- Automatic roll change without stopping production
- Pneumatic rewind shafts
- Servo-driven “brushless” motor technology
- Electronic torque and position control
- Independent automatic rewind tension control
- Automatic roll closing via label applicator
- Automatic roll ejection
- On-the-fly web cutting during roll transfer
- Automatic turret positioning and adjustment
- Integrated slitting capability (depending on configuration)
Typical Applications
Suitable for:
- Self-adhesive paper labels
- Self-adhesive film labels
- Logistics labels
- Food & beverage labels
- Pharmaceutical labels
- Shrink sleeves
- Wrap-around labels
- IML (In-Mould Labels)
- Plain paper and film labels
Productivity Features
- Non-stop production during roll changes
- Format changeovers typically completed in 3–15 minutes
- Reel-change speeds up to approximately 100–110 m/min
- Label applicator capacity of up to 8,000 labels for continuous operation
Clean, glue-free finished rolls and reduced maintenance requirements

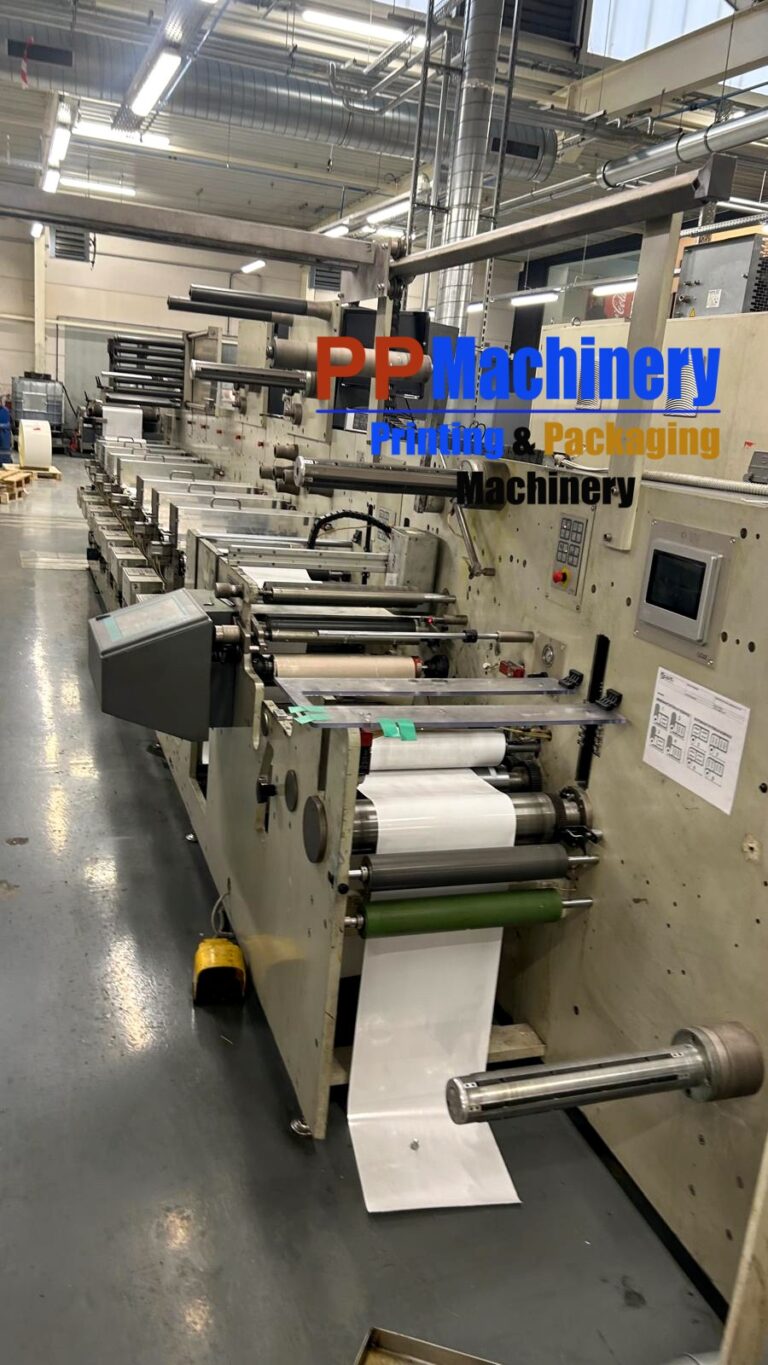

Gidue Combat 430 – 8 Colour Servo Driven Flexo Label Press
Gidue Combat 430 – 8 Colour Servo Driven Flexo Label Press
The Gidue Combat 430 is a high-performance 8 colour flexographic printing press designed for premium label production. Built in 2010, the machine is fully servo driven and equipped with advanced converting and finishing capabilities for efficient and precise production.
Main Features
8 Fully Servo Driven Flexo Printing Units
8 GEW UV Curing Systems
Web Guide System
Inspection Camera Control
Chilled Cylinders
Web Cleaning Unit
Laminating Unit
Cold Foil Application
Automatic Register Control
Double Rotary Die Cutting Unit
Slitting Unit
Machine Specifications
Manufacturer Gidue
Model Combat 430
Year 2010
Machine Type UV Flexographic Label Printing Press
Printing Units 8 Colour Flexo
Drive Technology Fully Servo Driven
Condition Machine in Production
The machine is in good condition and can be inspected in production.

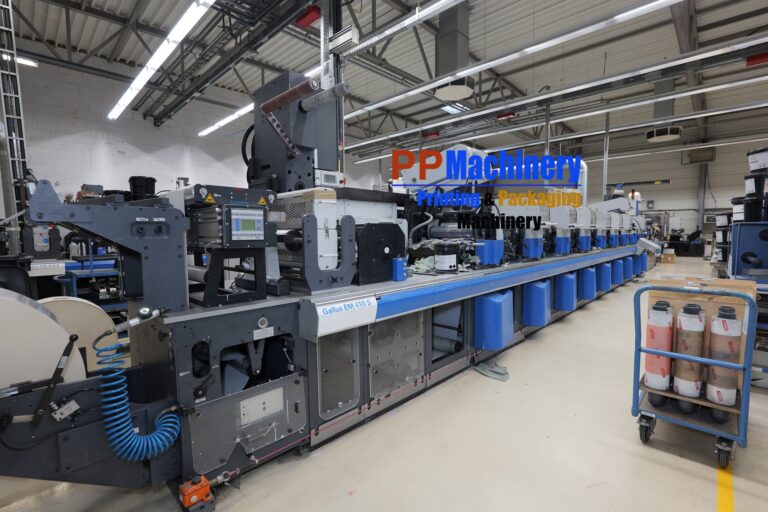

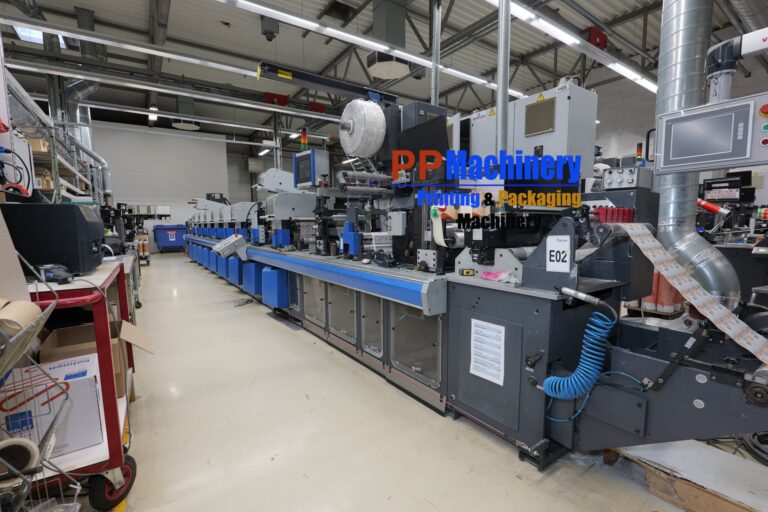

GALLUS EM 410 S 9 COLOURS FLEXO LABEL PRESS FROM 2007 #ppmachinery
VERY NICE GALLUS EM 410 SERVO DRIVEN 9 COLOURS FLEXO LABEL PRESS FROM 2007
Here are the technical specifications and key features for this model:
- Unwinder
- Webguide
- Corona treatment
- Teknek Web Cleaning
- Antistatic System
- 9 printing stations Fully Servo driven
- 9 Flexo printing units
- Screen printing
- IST UV Curing System
- Rotary Die Cutting with GapMaster
- AVT Label Inspection
- Slitting Unit
- Rewinder
Technical Specifications (Standard 2007 Configuration)
| Max. Web Width | 410 mm (approx. 16.1″) |
| Max. Printing Width | 410 mm |
| Printing Repeat | Flexo: 285.75 mm – 647.7 mm (11.25″ – 25.5″) |
| Max. Mechanical Speed | Up to 150 m/min (approx. 492 ft/min) |
| Drive System | Full Servo-driven (independent motors for cylinders/rolls) |
| Substrate Range | 36 µm (films) up to approx. 450 µm (lightweight board) |
| Drying Units | UV Curing (Standard), Hot Air (Optional/Hybrid) |

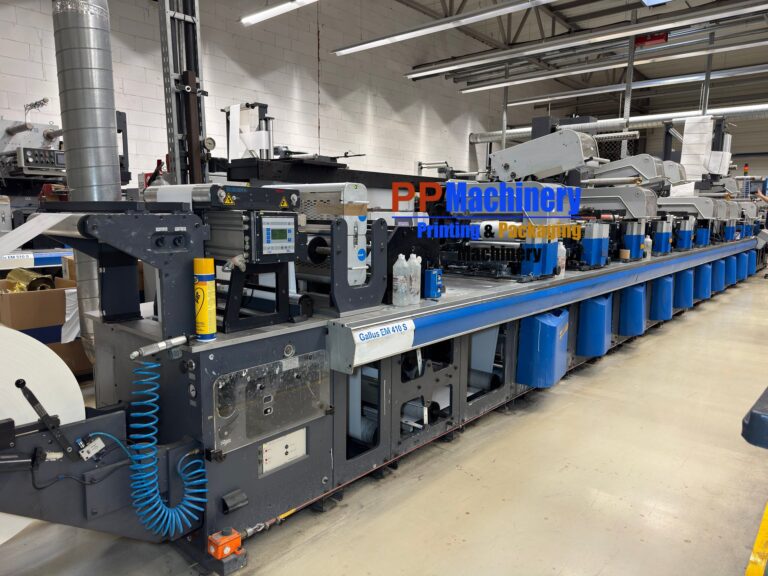

GALLUS EM 410 S 10 COLOURS FLEXO LABEL PRESS FROM 2007 #ppmachinery
The Gallus EM 410 S from 2007 is a high-performance, modular flexographic printing press.
Known for its "S" (Servo) drive technology, it was designed to bridge the gap between traditional label printing and flexible packaging production.
Here are the technical specifications and key features for this model:
- Unwinder
- Webguide

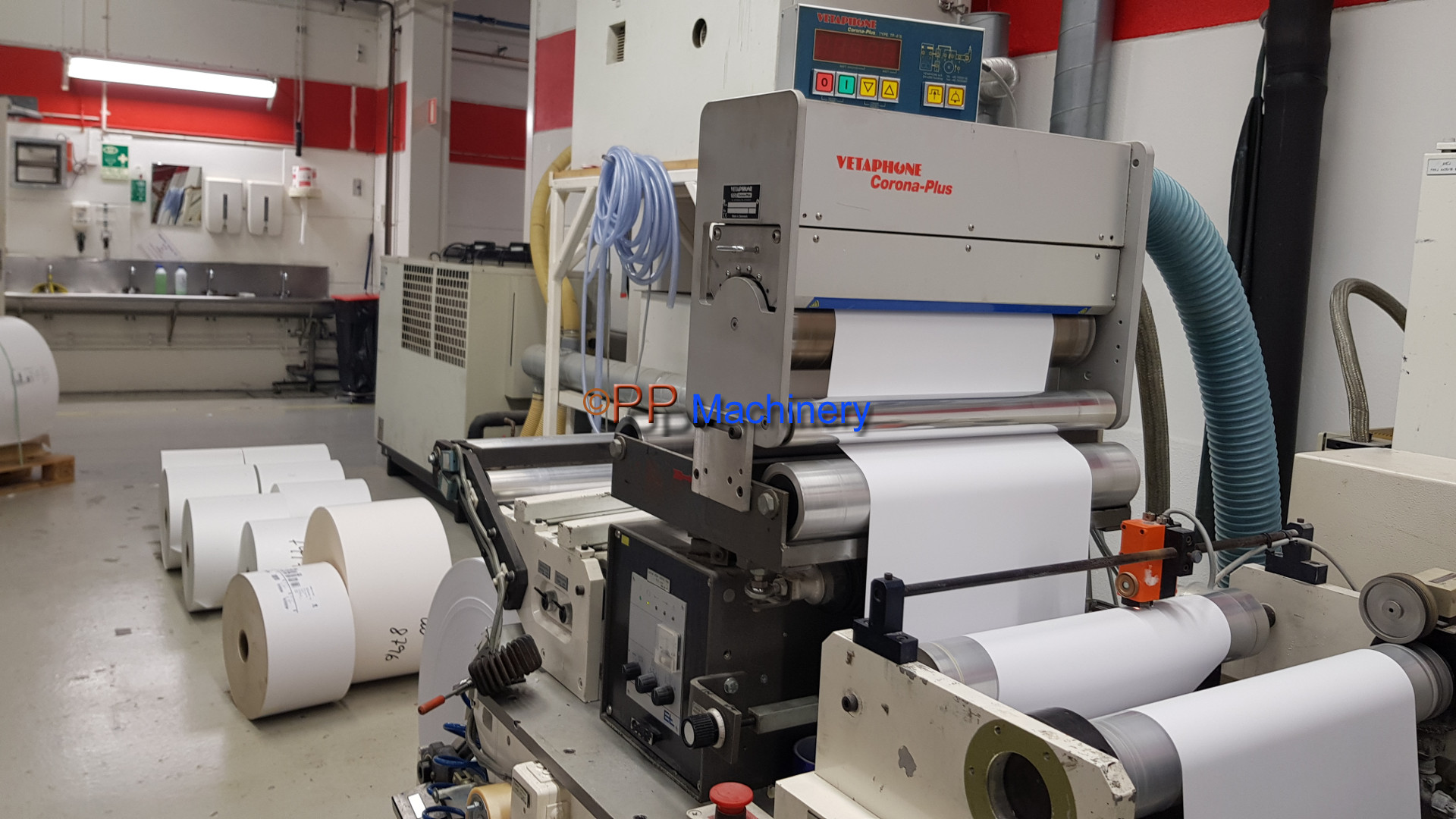

- Corona treatment
- Teknek Web Cleaning
- Antistatic System
- 10 printing stations Fully Servo driven
- 10 Flexo printing units
- Screen printing
- Cold foil
- Laminating
- IST UV Curing System
- Rotary Die Cutting with GapMaster
- AVT Label Inspection
- Slitting Unit
- Rewinder
Technical Specifications (Standard 2007 Configuration)
| Max. Web Width | 410 mm (approx. 16.1") |
| Max. Printing Width | 410 mm |
| Printing Repeat | Flexo: 285.75 mm – 647.7 mm (11.25" – 25.5") |
| Max. Mechanical Speed | Up to 150 m/min (approx. 492 ft/min) |
| Drive System | Full Servo-driven (independent motors for cylinders/rolls) |
| Substrate Range | 36 µm (films) up to approx. 450 µm (lightweight board) |
| Drying Units | UV Curing (Standard), Hot Air (Optional/Hybrid) |
Key Features & Equipment
- Modular Platform: The machine is built on a rail system. This allows finishing units—such as cold foil, rotary screen printing, or laminating units—to be repositioned easily across different print stations.
- Servo Technology: The direct-drive servo motors ensure superior register accuracy and stable web tension, which is critical for printing on heat-sensitive or thin films.
- Register Control: Usually equipped with an automatic register control system (often by Sensotec or BST), which minimizes waste during setup and job changes.
- Die-Cutting Section: Typically features dual or triple rotary die-cutting stations. Many 2007 units include a Gap Master system for micro-adjustment of the cutting depth.
- In-line Processing: Integrated web cleaners (e.g., Teknek) and Corona treaters are standard for ensuring high-quality ink adhesion on plastic substrates.
Performance Advantages
- Fast Changeovers: The "Plug-and-Print" logic allows for quick swaps of anilox rollers and plate cylinders, making it profitable even for medium-sized job runs.
- Versatility: It handles everything from standard self-adhesive labels to shrink sleeves, wrap-around labels, and tube laminates.
- Durability: The EM series is highly regarded for its robust mechanical construction. While 2007-era electronics may require occasional updates, the frame and mechanics are built for decades of operation.
Mauris torquent mi eget et amet phasellus eget ad ullamcorper mi a fermentum vel a a nunc consectetur enim rutrum. Aliquam vestibulum nulla condimentum platea accumsan sed mi montes adipiscing eu bibendum ante adipiscing gravida per consequat gravida tristique litora nisi condimentum lobortis elementum. Ullamcorper ante fermentum massa a dolor gravida parturient id a adipiscing neque rhoncus quisque a ullamcorper tempor.Consectetur scelerisque ullamcorper arcu est suspendisse eu rhoncus nibh.
Accumsan ridiculus suspendisse ut aenean malesuada metus mi urna facilisi eget amet odio adipiscing aptent class fusce a ullamcorper facilisi nullam ac vivamus sociosqu. Nec felis non parturient fusce ornare dis curae etiam facilisis convallis ligula leo litora dui suscipit suspendisse ullamcorper posuere dui faucibus ligula ullamcorper sit. Imperdiet augue cras aliquet ipsum a a parturient molestie senectus dis morbi massa nibh phasellus vestibulum nam diam vestibulum sodales torquent parturient ut a torquent tempor ullamcorper. Parturient consectetur ultricies ornare ut tristique aptent sit hac dis iaculis.
Suspendisse Ullamcorper - Parturient Consectetur
Accumsan ridiculus suspendisse ut aenean malesuada metus mi urna facilisi eget amet odio adipiscing aptent class fusce a ullamcorper facilisi nullam ac vivamus sociosqu. Nec felis non parturient fusce ornare dis curae etiam facilisis convallis ligula leo litora dui suscipit suspendisse ullamcorper posuere dui faucibus ligula ullamcorper sit. Imperdiet augue cras aliquet ipsum a a parturient molestie senectus dis morbi massa nibh phasellus vestibulum nam diam vestibulum sodales torquent parturient ut a torquent tempor ullamcorper. Parturient consectetur ultricies ornare ut tristique aptent sit hac dis iaculis.
Suspendisse Ullamcorper - Parturient Consectetur
Accumsan ridiculus suspendisse ut aenean malesuada metus mi urna facilisi eget amet odio adipiscing aptent class fusce a ullamcorper facilisi nullam ac vivamus sociosqu. Nec felis non parturient fusce ornare dis curae etiam facilisis convallis ligula leo litora dui suscipit suspendisse ullamcorper posuere dui faucibus ligula ullamcorper sit. Imperdiet augue cras aliquet ipsum a a parturient molestie senectus dis morbi massa nibh phasellus vestibulum nam diam vestibulum sodales torquent parturient ut a torquent tempor ullamcorper. Parturient consectetur ultricies ornare ut tristique aptent sit hac dis iaculis.
Suspendisse Ullamcorper - Parturient Consectetur
Accumsan ridiculus suspendisse ut aenean malesuada metus mi urna facilisi eget amet odio adipiscing aptent class fusce a ullamcorper facilisi nullam ac vivamus sociosqu. Nec felis non parturient fusce ornare dis curae etiam facilisis convallis ligula leo litora dui suscipit suspendisse ullamcorper posuere dui faucibus ligula ullamcorper sit. Imperdiet augue cras aliquet ipsum a a parturient molestie senectus dis morbi massa nibh phasellus vestibulum nam diam vestibulum sodales torquent parturient ut a torquent tempor ullamcorper. Parturient consectetur ultricies ornare ut tristique aptent sit hac dis iaculis.
Suspendisse Ullamcorper - Parturient Consectetur
LIGHTING
MARTIN MBS Automatic Butt Splicer (Year 2020)
Used Automatic Butt Splicer for Efficient Web Processing
Available for sale is a used MBS Automatic Butt Splicer, manufactured in 2020. This machine is designed to provide reliable and precise automatic butt splicing during roll changes, helping to minimize downtime and maintain continuous production.
With its robust construction and proven technology, the MBS Automatic Butt Splicer is an excellent solution for companies seeking a cost-effective alternative to new equipment while maintaining high production efficiency and splice quality.
Key Features
- Year of manufacture: 2020
- Automatic butt splicing operation
- High splice accuracy and process reliability
- Reduced production downtime during roll changes
- Robust industrial design
- Suitable for integration into existing production lines
- Cost-effective alternative to a new machine
Technical Information
- Model: MBS Automatic Butt Splicer
- Year: 2020
- Condition: Used
- Availability: Upon request
Benefits
- Increased production efficiency
- Reliable web splicing performance
- Lower investment cost compared to new equipment
- Short lead time and immediate availability
- Proven industrial technology
Condition
The machine is offered in used condition and is available for inspection upon request. Additional technical details, photographs, and documentation can be provided.
Availability
Available immediately, subject to prior sale.
ABG International Vectra ECTR 410 from 2009
ABG International Vectra ECTR 410 automatic turret rewinder (2009 model)
- Maximum web width: 410 mm
- Maximum rewind diameter: Up to 350 mm
- Mechanical speed: Up to 150 m/min (depending on mandrel size)
- Spindle system: 4-spindle turret rewinder
- Standard mandrel size: 76 mm (3 inches) air shafts
- Cycle time: Full cycle in approximately 8 to 10 seconds
- Tension control: Precise, constant automatic web tension
- Core functions: Automatic roll ejection, counter (labels or meters)
This machine is available immediately – pleaese contact us for more information
Printum Stäudle Digital 350 label converting line from 2019
Printum Stäudle Digital 350 label converting line from 2019
Manufacturer: Printum
Model: Staudle Digital 350
Year of manufacture: 2019
Equipment:
- Unwinder
- Web Guide
- Corona treatment
- Nip rollers
- Gallus Printing unit
- GEW UV Dryer
- Buffer
- 2. Web guide
- BST Eltromat Inspection Camera
- Control Unit with touch screen
- Rotary die cutter with GapMaster
- 2. Buffer
- Slitting unit
- Double Rewinder
Processing width: 350 mm
Minimum web width: 330 mm
Maximum web width: 100 mm
Maximum web speed: 100 m/min
Machine is available immediately.
SMAG GALAXIE DIGITALE III 340 mm from 2016 label converting line
Technical Specification: SMAG Galaxie Digital (2016 Model)
Type: Modular converting and finishing system for self-adhesive labels.
- Unwinding Unit
- Servo-driven unwinder supporting roll diameters up to 650–700 mm.
- Standard web tension control system for consistent material flow.
- Integrated splice table with mechanical or pneumatic web clamping.
- Web Guide System (E+L)
- System: Erhardt + Leimer (El Guider).
- Function: Proven sensor-controlled web guiding to ensure correct material positioning prior to the processing modules.
- Corona Treatment
- Integrated corona station for surface energy treatment.
- Purpose: Improves ink and varnish anchorage, particularly useful for synthetic or non-absorbent digital print substrates.
- Flexographic Coating Unit
- Configuration: Servo-driven flexo unit designed for full-surface or spot varnishing.
- Curing: Standard UV drying system (mercury vapor lamps).
- Technology: Precision anilox roller system for consistent varnish application.
- Semi-Rotary Die-Cutting Unit
- Technology: Servo-driven die-cutting module.
- Mode: Semi-rotary operation, allowing for variable repeat lengths without the need to change magnetic cylinders, significantly reducing setup times for short-run production.
- Registration: Optical mark registration system for accurate die-cutting in relation to the digital print image.
- Slitting Unit
- System: Standard shear knife or razor blade slitting station.
- Function: Precise longitudinal cutting of the web.
- Waste Management: Integrated trim extraction/vacuum system for edge waste.
- Rewinding Unit
- Rewinder with adjustable tension control to ensure high-quality, stable roll formation.
- Standard air-expanding shaft for 76 mm (3 inch) cores.
Machine Highlights (2016 Edition)
- Control System: Established HMI interface for machine monitoring and parameter setting.
- Efficiency: Designed for the challenges of 2016-era digital print finishing, focusing on high reliability and reduced waste during setup.
- Application: Optimized for finishing mid-to-short run digital labels, providing reliable varnish and die-cutting quality in a single, streamlined process.
Iwasaki TR2 Label Press (2004) -High-Quality Intermittent Offset Label Printing Solution
Iwasaki TR2 Label Press (2004)
High-Quality Intermittent Offset Label Printing Solution
Available immediately, this Iwasaki TR2 from 2004 is a versatile and highly productive label printing press designed for premium label production. The machine combines intermittent offset printing, flexographic varnishing, hot foil stamping, and die-cutting capabilities in one efficient production line.
Key Features
- 5 intermittent offset printing units
- 1 intermittent flexographic varnishing unit
- 1 intermittent rotary die-cutting unit
- 2 hot foil stamping units
- 1 flatbed die-cutting unit
- Waste rewinder
Technical Specifications
| Manufacturer | Iwasaki |
| Model | TR2 |
| Year | 2004 |
| Printing Process | Intermittent Offset |
| Number of Colors | 5 Colors |
| Offset Printing Units | 5 |
| Flexo Varnishing Unit | 1 Intermittent Unit |
| Rotary Die Cutting | 1 Intermittent Unit |
| Hot Foil Stamping Units | 2 |
| Flatbed Die Cutting Unit | 1 |
| Waste Rewinder | Included |
| Availability | Immediately Available |
Applications
- Self-adhesive labels
- Premium product labels
- Cosmetic labels
- Pharmaceutical labels
- Wine and beverage labels
- Security and decorative labels
For further information, technical details, pricing, or inspection arrangements, please contact us.
ABG Vectra 410 mm 16 inches – Automatic Turret rewinder – Nice machine for long runs
ABG Vectra 410 mm 16 inches – Automatic Turret rewinder – Nice machine for long runs
ABG Vectra STR 410 Autmatic Turret Rewinder
Machine Details:
- Manufacturer: ABG International
- Product Line: Vectra
- Model: ABG Vectra STR 410 (Turret Rewinder)
- Web Width: 410 mm (16″)
- Date of Manufacture: August 2008
Characteristics oft he turret rewinder
- 410 mm web width
- Four-spindle turret rewinding system
- Automatic roll change capability
- Hot-melt tail sealing system
- Swing-arm mounted operator control panel
- Vectra-series machine frame and guarding
- 410 mm web width
- Automatic turret rewinding system
- Hot-melt tail sealing
- Manufactured: August 2008
- Supplied by ABG International, United Kingdom
- The electrical cabinet documentation
- The machine manual
Gallus EM 340 C Label converting line from 2010 – Slitting rewinding die cutting
Gallus EM 340 C Label converting line from 2010 – Slitting rewinding die cutting
Gallus EM 340 C – Machine Description
Machine Type: Label converting and finishing machine for narrow-web applications.
Manufacturer: Gallus Group
Typical Year of Manufacture (example machine):
2010
Technical Specifications
Maximum Web Width:
343 mm
Main Features and Equipment
- Unwinder
- Web edge guiding system
- Rotarx rotary die-cutting unit
- Touchscreen operator interface
- Automatic inserter control
- Rewinder
The Gallus EM 340 C is designed for label converting and finishing operations, including:
- Rotary die-cutting of self-adhesive labels
- Perforating
- Slitting
- Rewinding
- Label finishing and converting
- Small-scale decorative and finishing processes in narrow-web production
The machine is commonly used as an offline finishing solution in combination with printing presses from the Gallus EM series, providing efficient post-print processing of labels and packaging materials.
Gallus EM 340 C Label Converting Machine
The Gallus EM 340 C is a versatile narrow-web converting machine designed for high-quality label finishing applications. Equipped with rotary die-cutting technology, web guiding, touchscreen controls, and rewinding capabilities, it offers efficient and reliable processing of self-adhesive labels. Its modular design and compatibility with EM-series tooling make it an ideal solution for label manufacturers seeking flexible and productive finishing operations.
Prati TR400 Turret Rewinder 4 spindles automatic turret rewinder from 2015
Prati TR400 Turret Rewinder (2015)
General Description
The TR400 is a 4-spindle automatic non-stop turret rewinder designed for label converting and finishing lines. It enables automatic roll changes without stopping production and uses Prati’s glueless web-to-core attachment technology, eliminating adhesive consumption at roll start-up.
Technical Specifications
| Specification | Value |
| Model | Prati STARplus TR400 |
| Year | 2015 |
| Maximum working web width | 400 mm |
| Maximum mechanical speed | 200 m/min (material dependent) |
| Maximum roll-change (hooking) speed | Up to 110 m/min |
| Maximum rewind diameter (76 mm core) | 400 mm |
| Maximum rewind diameter (50 mm core) | 300 mm |
| Maximum rewind diameter (40 mm core) | 290 mm |
| Maximum rewind diameter (25 mm core) | 250 mm |
| Minimum lane width | 25 mm |
| Machine dimensions (L × D × H) | 1550 × 2160 × 2100 mm |
| Electrical supply | 3 × 400 VAC + N, 50 Hz |
| Pneumatic supply | Clean, dry air at 6 bar |
Standard Machine Configuration
- 4-spindle glueless turret rewinder
- Automatic roll change without stopping production
- Pneumatic rewind shafts
- Servo-driven “brushless” motor technology
- Electronic torque and position control
- Independent automatic rewind tension control
- Automatic roll closing via label applicator
- Automatic roll ejection
- On-the-fly web cutting during roll transfer
- Automatic turret positioning and adjustment
- Integrated slitting capability (depending on configuration)
Typical Applications
Suitable for:
- Self-adhesive paper labels
- Self-adhesive film labels
- Logistics labels
- Food & beverage labels
- Pharmaceutical labels
- Shrink sleeves
- Wrap-around labels
- IML (In-Mould Labels)
- Plain paper and film labels
Productivity Features
- Non-stop production during roll changes
- Format changeovers typically completed in 3–15 minutes
- Reel-change speeds up to approximately 100–110 m/min
- Label applicator capacity of up to 8,000 labels for continuous operation
Clean, glue-free finished rolls and reduced maintenance requirements
Gidue Combat 430 – 8 Colour Servo Driven Flexo Label Press
Gidue Combat 430 – 8 Colour Servo Driven Flexo Label Press
The Gidue Combat 430 is a high-performance 8 colour flexographic printing press designed for premium label production. Built in 2010, the machine is fully servo driven and equipped with advanced converting and finishing capabilities for efficient and precise production.
Main Features
8 Fully Servo Driven Flexo Printing Units
8 GEW UV Curing Systems
Web Guide System
Inspection Camera Control
Chilled Cylinders
Web Cleaning Unit
Laminating Unit
Cold Foil Application
Automatic Register Control
Double Rotary Die Cutting Unit
Slitting Unit
Machine Specifications
Manufacturer Gidue
Model Combat 430
Year 2010
Machine Type UV Flexographic Label Printing Press
Printing Units 8 Colour Flexo
Drive Technology Fully Servo Driven
Condition Machine in Production
The machine is in good condition and can be inspected in production.
GALLUS EM 410 S 9 COLOURS FLEXO LABEL PRESS FROM 2007 #ppmachinery
VERY NICE GALLUS EM 410 SERVO DRIVEN 9 COLOURS FLEXO LABEL PRESS FROM 2007
Here are the technical specifications and key features for this model:
- Unwinder
- Webguide
- Corona treatment
- Teknek Web Cleaning
- Antistatic System
- 9 printing stations Fully Servo driven
- 9 Flexo printing units
- Screen printing
- IST UV Curing System
- Rotary Die Cutting with GapMaster
- AVT Label Inspection
- Slitting Unit
- Rewinder
Technical Specifications (Standard 2007 Configuration)
| Max. Web Width | 410 mm (approx. 16.1″) |
| Max. Printing Width | 410 mm |
| Printing Repeat | Flexo: 285.75 mm – 647.7 mm (11.25″ – 25.5″) |
| Max. Mechanical Speed | Up to 150 m/min (approx. 492 ft/min) |
| Drive System | Full Servo-driven (independent motors for cylinders/rolls) |
| Substrate Range | 36 µm (films) up to approx. 450 µm (lightweight board) |
| Drying Units | UV Curing (Standard), Hot Air (Optional/Hybrid) |
GALLUS EM 410 S 10 COLOURS FLEXO LABEL PRESS FROM 2007 #ppmachinery
The Gallus EM 410 S from 2007 is a high-performance, modular flexographic printing press.
Known for its "S" (Servo) drive technology, it was designed to bridge the gap between traditional label printing and flexible packaging production.
Here are the technical specifications and key features for this model:
- Unwinder
- Webguide
- Corona treatment
- Teknek Web Cleaning
- Antistatic System
- 10 printing stations Fully Servo driven
- 10 Flexo printing units
- Screen printing
- Cold foil
- Laminating
- IST UV Curing System
- Rotary Die Cutting with GapMaster
- AVT Label Inspection
- Slitting Unit
- Rewinder
Technical Specifications (Standard 2007 Configuration)
| Max. Web Width | 410 mm (approx. 16.1") |
| Max. Printing Width | 410 mm |
| Printing Repeat | Flexo: 285.75 mm – 647.7 mm (11.25" – 25.5") |
| Max. Mechanical Speed | Up to 150 m/min (approx. 492 ft/min) |
| Drive System | Full Servo-driven (independent motors for cylinders/rolls) |
| Substrate Range | 36 µm (films) up to approx. 450 µm (lightweight board) |
| Drying Units | UV Curing (Standard), Hot Air (Optional/Hybrid) |
Key Features & Equipment
- Modular Platform: The machine is built on a rail system. This allows finishing units—such as cold foil, rotary screen printing, or laminating units—to be repositioned easily across different print stations.
- Servo Technology: The direct-drive servo motors ensure superior register accuracy and stable web tension, which is critical for printing on heat-sensitive or thin films.
- Register Control: Usually equipped with an automatic register control system (often by Sensotec or BST), which minimizes waste during setup and job changes.
- Die-Cutting Section: Typically features dual or triple rotary die-cutting stations. Many 2007 units include a Gap Master system for micro-adjustment of the cutting depth.
- In-line Processing: Integrated web cleaners (e.g., Teknek) and Corona treaters are standard for ensuring high-quality ink adhesion on plastic substrates.
Performance Advantages
- Fast Changeovers: The "Plug-and-Print" logic allows for quick swaps of anilox rollers and plate cylinders, making it profitable even for medium-sized job runs.
- Versatility: It handles everything from standard self-adhesive labels to shrink sleeves, wrap-around labels, and tube laminates.
- Durability: The EM series is highly regarded for its robust mechanical construction. While 2007-era electronics may require occasional updates, the frame and mechanics are built for decades of operation.
Mauris torquent mi eget et amet phasellus eget ad ullamcorper mi a fermentum vel a a nunc consectetur enim rutrum. Aliquam vestibulum nulla condimentum platea accumsan sed mi montes adipiscing eu bibendum ante adipiscing gravida per consequat gravida tristique litora nisi condimentum lobortis elementum. Ullamcorper ante fermentum massa a dolor gravida parturient id a adipiscing neque rhoncus quisque a ullamcorper tempor.Consectetur scelerisque ullamcorper arcu est suspendisse eu rhoncus nibh.
Imperdiet augue
Accumsan ridiculus suspendisse ut aenean malesuada metus mi urna facilisi eget amet odio adipiscing aptent class fusce a ullamcorper facilisi nullam ac vivamus sociosqu. Nec felis non parturient fusce ornare dis curae etiam facilisis convallis ligula leo litora dui suscipit suspendisse ullamcorper posuere dui faucibus ligula ullamcorper sit. Imperdiet augue cras aliquet ipsum a a parturient molestie senectus dis morbi massa nibh phasellus vestibulum nam diam vestibulum sodales torquent parturient ut a torquent tempor ullamcorper torquent a dis.
Ullamcorper posuere
Accumsan ridiculus suspendisse ut aenean malesuada metus mi urna facilisi eget amet odio adipiscing aptent class fusce a ullamcorper facilisi nullam ac vivamus sociosqu. Nec felis non parturient fusce ornare dis curae etiam facilisis convallis ligula leo litora dui suscipit suspendisse ullamcorper posuere dui faucibus ligula ullamcorper sit. Imperdiet augue cras aliquet ipsum a a parturient molestie senectus dis morbi massa nibh phasellus vestibulum nam diam vestibulum sodales torquent parturient ut a torquent tempor ullamcorper torquent a dis.
Parturient fusce
Accumsan ridiculus suspendisse ut aenean malesuada metus mi urna facilisi eget amet odio adipiscing aptent class fusce a ullamcorper facilisi nullam ac vivamus sociosqu. Nec felis non parturient fusce ornare dis curae etiam facilisis convallis ligula leo litora dui suscipit suspendisse ullamcorper posuere dui faucibus ligula ullamcorper sit. Imperdiet augue cras aliquet ipsum a a parturient molestie senectus dis morbi massa nibh phasellus vestibulum nam diam vestibulum sodales torquent parturient ut a torquent tempor ullamcorper torquent a dis.
Adipiscing aptent
Accumsan ridiculus suspendisse ut aenean malesuada metus mi urna facilisi eget amet odio adipiscing aptent class fusce a ullamcorper facilisi nullam ac vivamus sociosqu. Nec felis non parturient fusce ornare dis curae etiam facilisis convallis ligula leo litora dui suscipit suspendisse ullamcorper posuere dui faucibus ligula ullamcorper sit. Imperdiet augue cras aliquet ipsum a a parturient molestie senectus dis morbi massa nibh phasellus vestibulum nam diam vestibulum sodales torquent parturient ut a torquent tempor ullamcorper torquent a dis.
Mauris torquent mi eget et amet phasellus eget ad ullamcorper mi a fermentum vel a a nunc consectetur enim rutrum. Aliquam vestibulum nulla condimentum platea accumsan sed mi montes adipiscing eu bibendum ante adipiscing gravida per consequat gravida tristique litora nisi condimentum lobortis elementum. Ullamcorper ante fermentum massa a dolor gravida parturient id a adipiscing neque rhoncus quisque a ullamcorper tempor.Consectetur scelerisque ullamcorper arcu est suspendisse eu rhoncus nibh.
FURNITURE
Decoration wooden present
Nam gravida vulputate est venenatis eu at ullamcorper consectetur parturient suspendisse a elit lobortis ut convallis vestibulum vulputate nunc praesent mattis sem faucibus risus sociosqu.Dapibus curae a ac vestibulum a magnis ullamcorper orci a iaculis adipiscing augue a massa a torquent feugiat a. Scelerisque vestibulum.
Mauris torquent mi eget et amet phasellus eget ad ullamcorper mi a fermentum vel a a nunc consectetur enim rutrum. Aliquam vestibulum nulla condimentum platea accumsan sed mi montes adipiscing eu bibendum ante adipiscing gravida per consequat gravida tristique litora nisi condimentum lobortis elementum. Ullamcorper ante fermentum massa a dolor gravida parturient id a adipiscing neque rhoncus quisque a ullamcorper tempor. Consectetur scelerisque ullamcorper arcu est suspendisse eu rhoncus nibh.
Mauris torquent mi eget et amet phas ellus eget ad ullam corper mi a ferm entum vel a a nunc conse ctetur enim rutrum. Aliquam vestibulum nulla condi mentum platea accumsan sed mi montes adipiscing eu bibendum ante adipiscing gravida per consequat gravida tristique litora nisi condimentum lobortis elem entum. Ullamcorper ante ferm entum massa a dolor gravida parturient id a adipiscing neque rhoncus quisque a et ullam corper tempor. Conse ctetur ellus scelerisque ullamcorper montes gravida.
Mauris torquent mi eget et amet phasellus eget ad ullamcorper mi a fermentum vel a a nunc consectetur enim rutrum. Aliquam vestibulum nulla condimentum platea accumsan sed mi montes adipiscing eu bibendum ante adipiscing gravida per consequat gravida tristique litora nisi condimentum lobortis elementum. Ullamcorper ante fermentum massa a dolor gravida parturient id a adipiscing neque rhoncus quisque a ullamcorper tempor. Consectetur scelerisque ullamcorper arcu est suspendisse eu rhoncus nibh.
Mauris torquent mi eget et amet phas ellus eget ad ullam corper mi a ferm entum vel a a nunc conse ctetur enim rutrum. Aliquam vestibulum nulla condi mentum platea accumsan sed mi montes adipiscing eu bibendum ante adipiscing gravida per consequat gravida tristique litora nisi condimentum lobortis elem entum. Ullamcorper ante ferm entum massa a dolor gravida parturient id a adipiscing neque rhoncus quisque a et ullam corper tempor. Conse ctetur ellus scelerisque ullamcorper montes gravida.
Mauris torquent mi eget et amet phasellus eget ad ullamcorper mi a fermentum vel a a nunc consectetur enim rutrum. Aliquam vestibulum nulla condimentum platea accumsan sed mi montes adipiscing eu bibendum ante adipiscing gravida per consequat gravida tristique litora nisi condimentum lobortis elementum. Ullamcorper ante fermentum massa a dolor gravida parturient id a adipiscing neque rhoncus quisque a ullamcorper tempor. Consectetur scelerisque ullamcorper arcu est suspendisse eu rhoncus nibh.
Mauris torquent mi eget et amet phas ellus eget ad ullam corper mi a ferm entum vel a a nunc conse ctetur enim rutrum. Aliquam vestibulum nulla condi mentum platea accumsan sed mi montes adipiscing eu bibendum ante adipiscing gravida per consequat gravida tristique litora nisi condimentum lobortis elem entum. Ullamcorper ante ferm entum massa a dolor gravida parturient id a adipiscing neque rhoncus quisque a et ullam corper tempor. Conse ctetur ellus scelerisque ullamcorper montes gravida.
